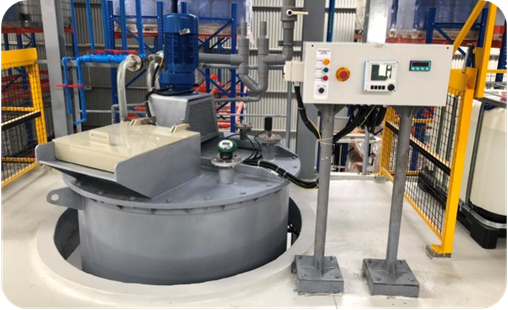

C.PRO - HIGH SPEED MIXER

C.PRO - High speed mixer

Superior Design

  • The optimized design to break the stable swing current during operation

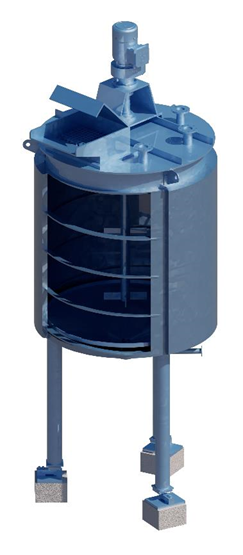

  • Flexibility in design: vertical suspension, no support with sturdy base and flexible installation
  • The flows conflict and cancel each other, reducing the impact to the impeller structure and motor shaft
  • Optimally designed for maximum Torque

Operating Principle

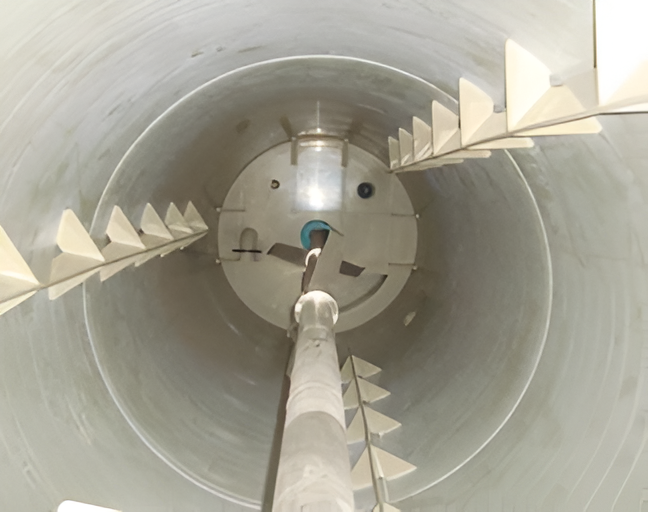

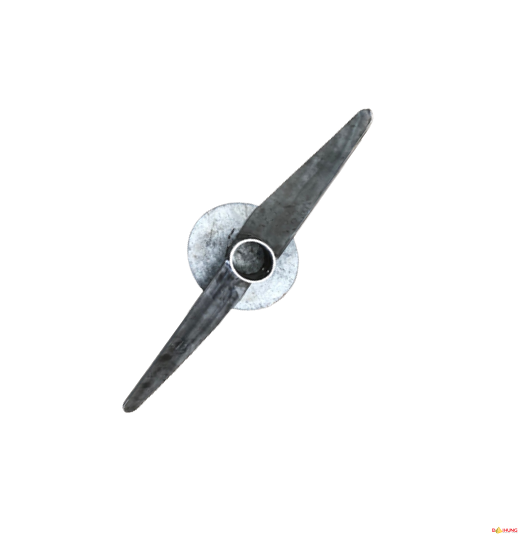

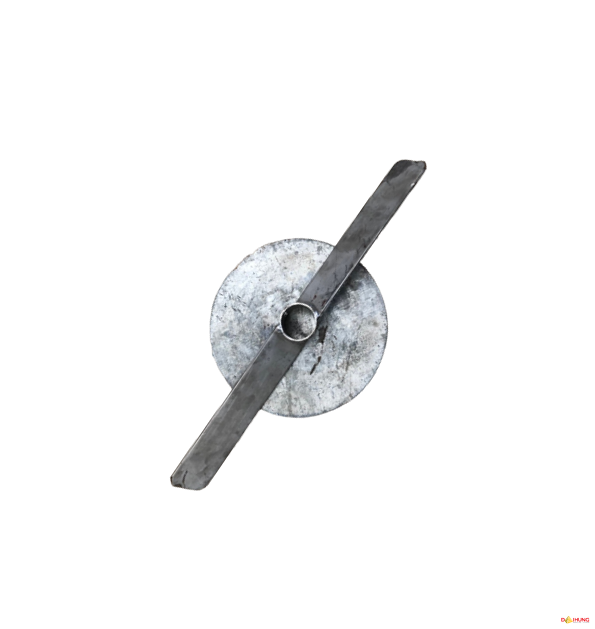

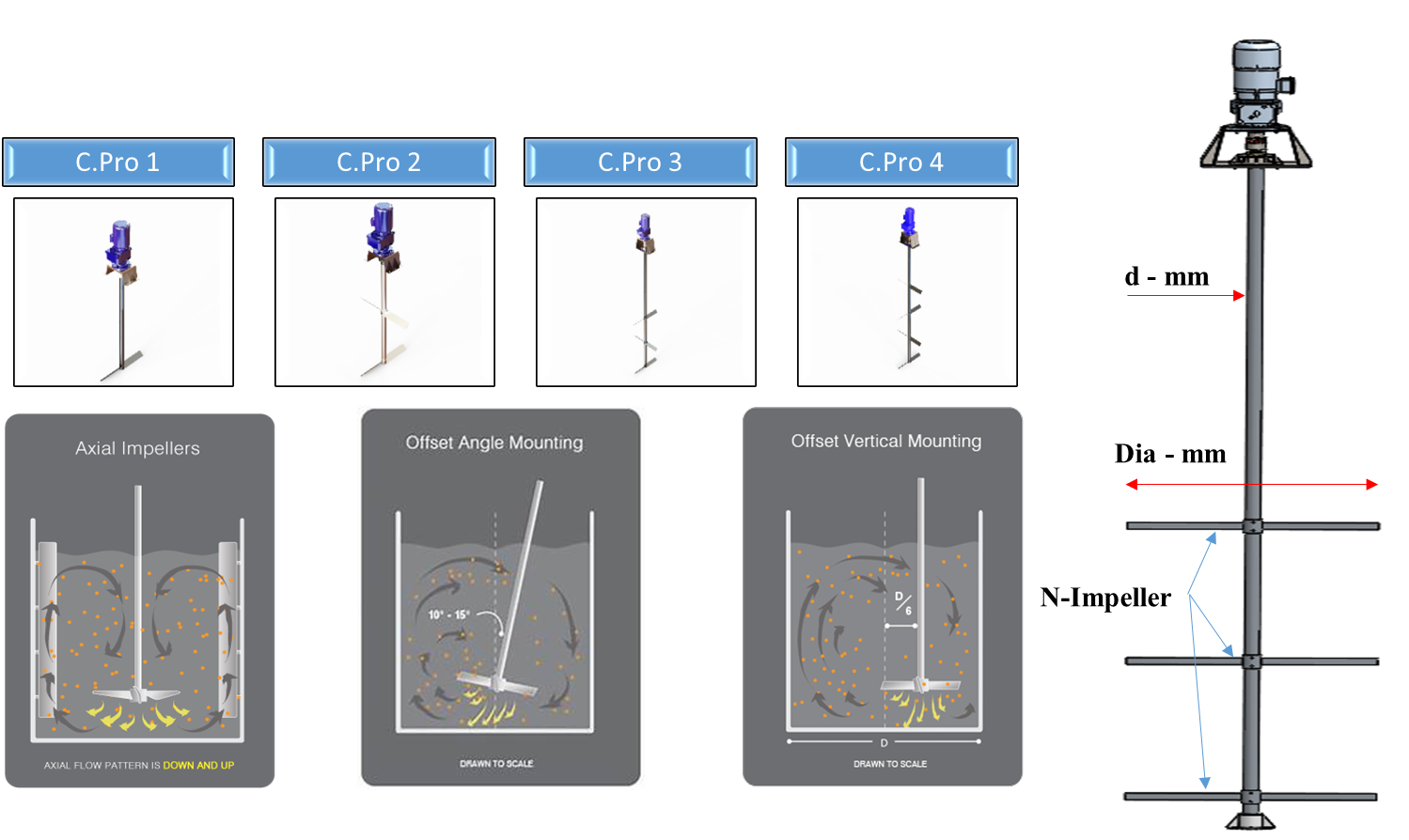

-C.Pro is designed with a shaft linked to a vertically distributed impeller. The flow direction of the impeller can be flexibly changed according to installation conditions and adapted to many applications.
-The impeller diameter (D) and the appropriate angle can be able to create turbulent currents and eliminate each other out during operation.
-C.Pro operates at high speed (> 70rpm), under the impact of the impeller to the water, creating a maximum turbulent flow that increases the mixing efficiency of Liquid - Solid, Liquid - Liquid.

Device selection

Tank size
Fluids

Q&A

-> An industrial exhaust fan is designed to remove air, heat, and fumes from a workspace, while a centrifugal fan uses centrifugal force to move air efficiently through ducts or systems. Centrifugal fans are commonly used in dust collection and ventilation systems requiring high pressur

-> A cyclone dust collector primarily separates larger dust particles using centrifugal force. It is not effective for fine particles like PM2.5. To remove PM2.5 efficiently, a bag filter or electrostatic precipitator should be used after the cyclone stage

-> A gas scrubber is typically used to treat acidic or chemical exhaust gases such as SO₂, HCl, NH₃, and VOCs. Depending on the scrubbing solution and design, it can also capture particulates and neutralize harmful emissions from industrial processes

-> An industrial mixer is suitable for surface or tank-level mixing in chemical or wastewater treatment systems, while a submersible mixer is ideal for continuous agitation in deep tanks or equalization basins to prevent sedimentation

-> A high-quality submersible mixer typically lasts between 5 to 10 years, depending on material quality, operating conditions, and maintenance frequency. Using stainless steel materials and regular servicing can extend the mixer’s lifetime

-> A belt filter press can process between 5 to 50 cubic meters of sludge per day, depending on sludge concentration, belt width, and machine capacity. Proper conditioning and polymer dosing improve dehydration efficiency

-> Yes, a DAF system is highly effective in separating oil, grease, and suspended solids from food-processing wastewater. By injecting microbubbles, it floats contaminants to the surface for removal, improving overall treatment efficiency

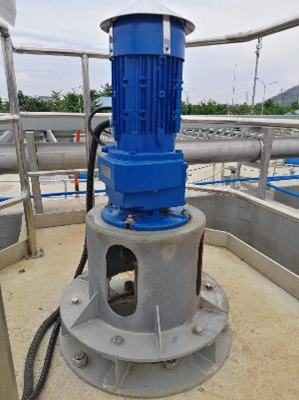

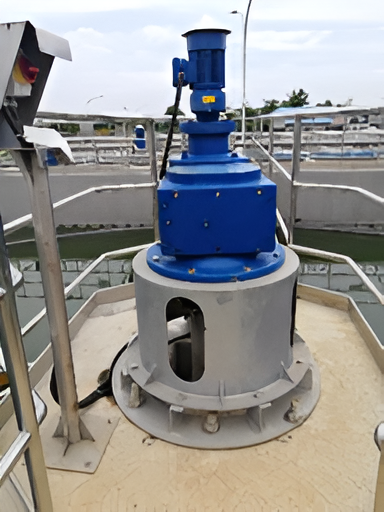

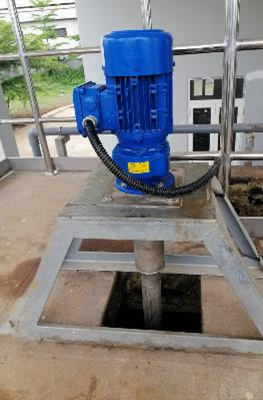

Flexible designed for various conditions
Application
  • Mixing chemical in form of Liquid - Solid, Liquid – Liquid
  • Mixing several type of chemical in short duration
  • Applying in industrials requiring mixing chemical with high precision and strict process control

Model Spec of Mixer
Name Diameter N
mm Impeller
C.pro 500 2 - 4 Model: C.Pro - Dia - N
Material: SS304, SS400-FRP
Type: Centrifugal Propeller
Output speed: 75 - 120 rpm
Power: 0,37kW - 37kW
Application: High speed , Flocculation
C.pro 800 2 - 4
C.pro 1.000 2 - 4
C.pro 1.250 2 - 4
C.pro 1.500 2 - 4
C.pro 1.800 2 - 4
C.pro 2.000 2 - 4
