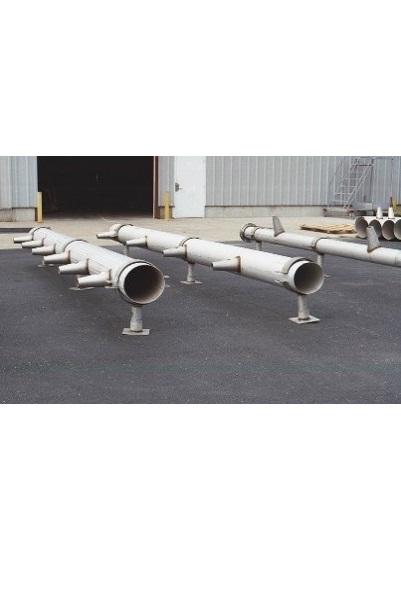

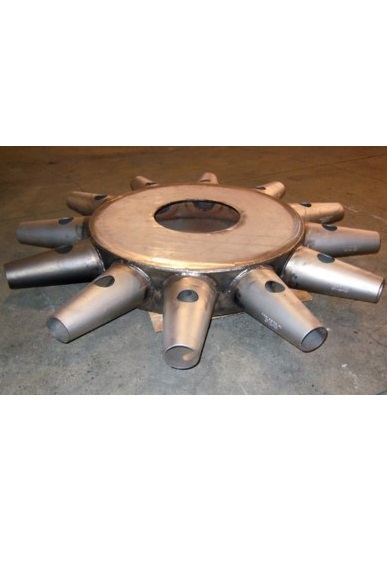

HYDRAULIC MIXER

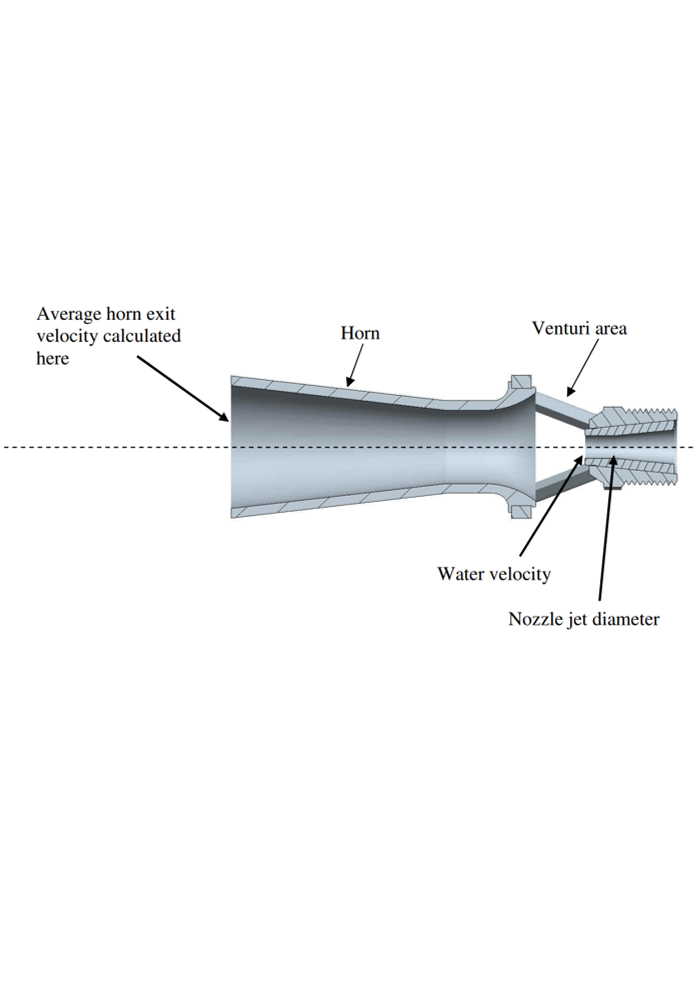

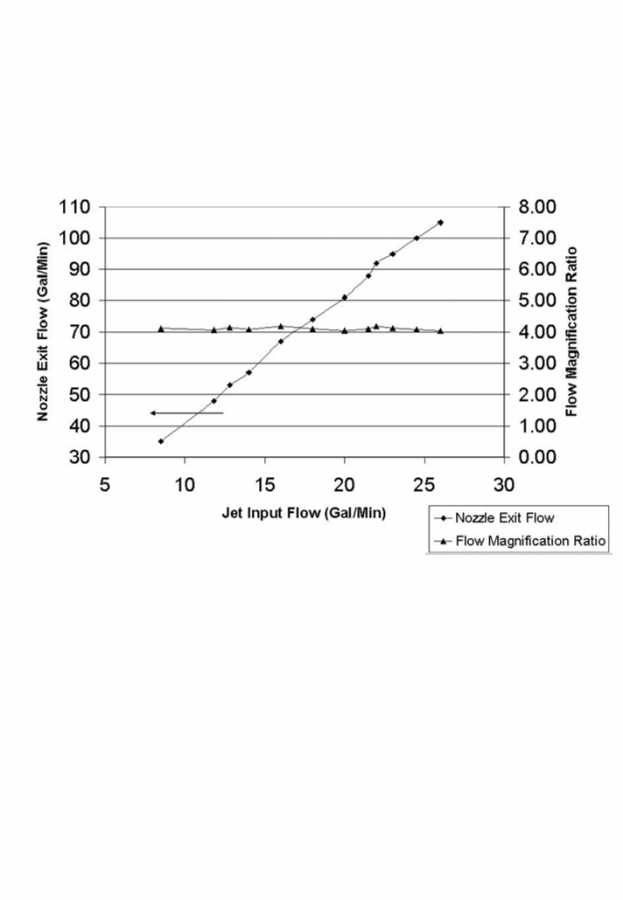

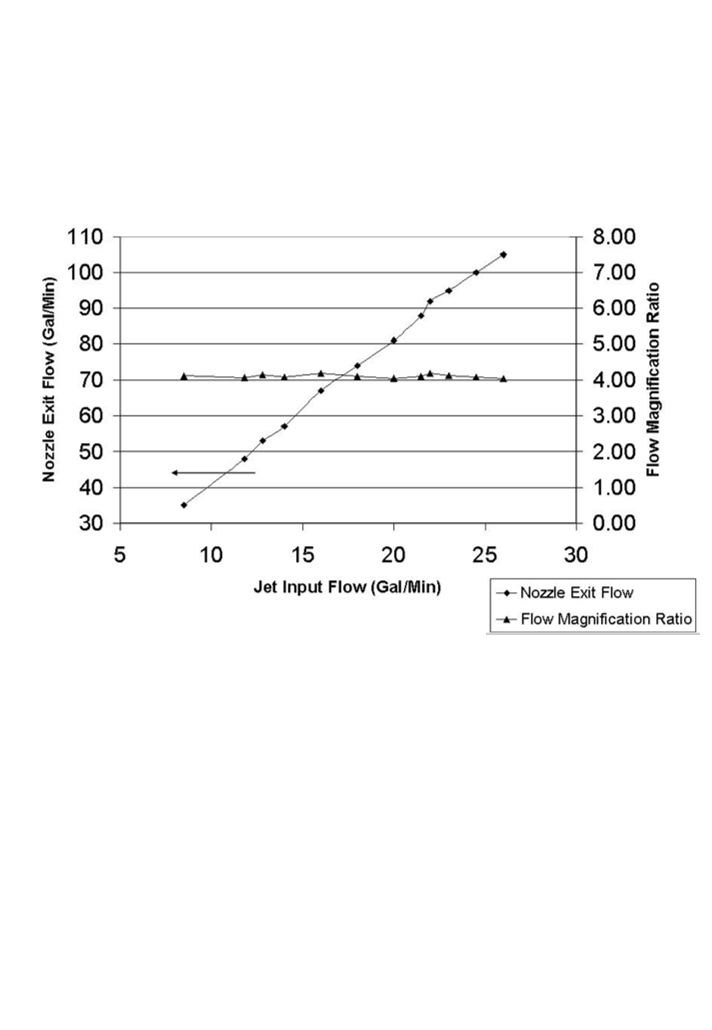

Model to test the efficiency:
Note: The size of products can be modified depend on the kind of TSS, water…

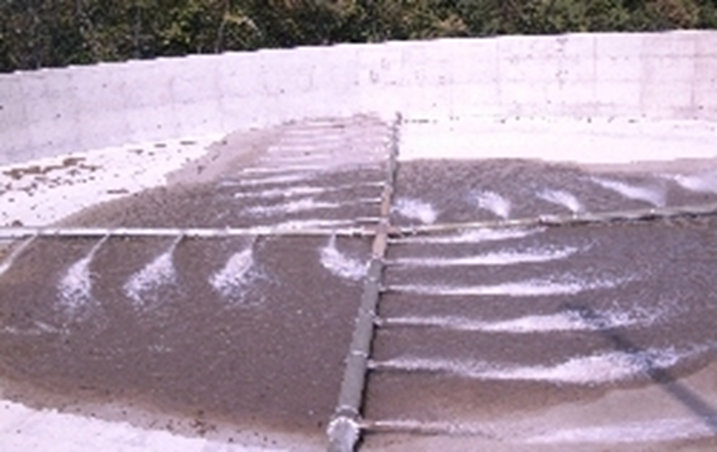

AIR MIXER
Note: The size of products can be modified depend on the kind of TSS, water…
Model to test the efficiency:
| Type | Symbol | Application condition |

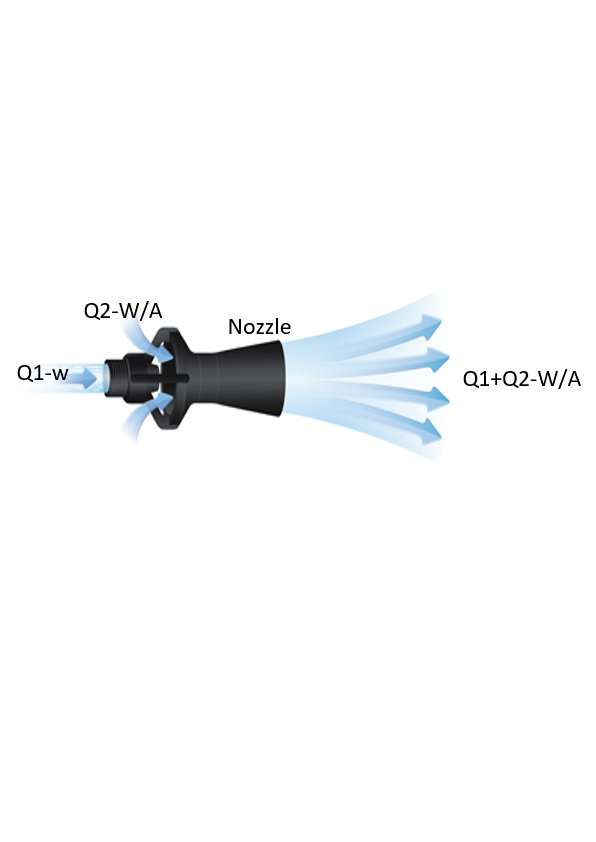

| Hydraulic Mixer | HM | Mixing liquid 1 – liquid2 |
| Jet Mixer | JM | Mixing liquid – Air |

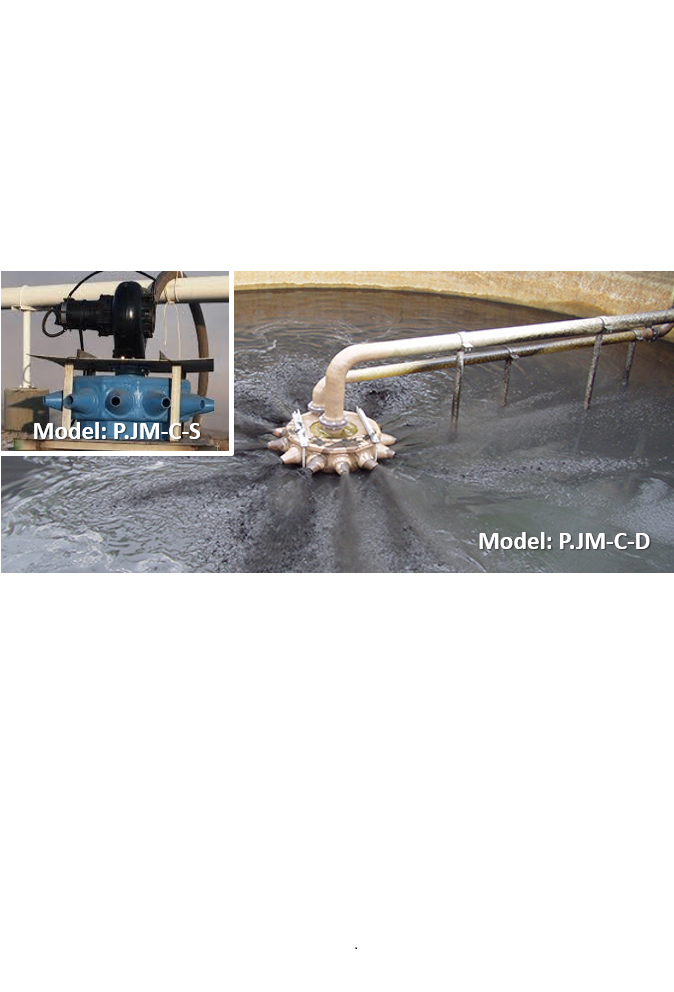

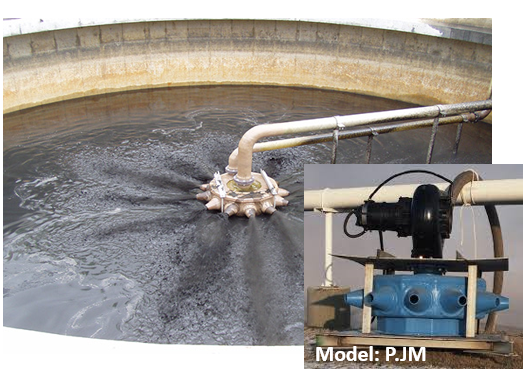

| Pump + Jet Mixer | PJM | Mixing liquid – air by using pump |
| MODEL: HM/JM/P.JM – 20 - P/C - D/S.3,7 - 4 | |
| HM | Option 1: Hydraulic Mixer |
| JM | Option 2: Jet Mixer |
| P.JM | Option 3: Pump + Jet Mixer |
| 20 | Flow rate – m3/h |
| P/C | Turbular or circular design |
| D/S | Submersible or dry pump |
| 3,7 | Power – P (kw) |
| 4 | Quantity of Nozzle |
| Model | |||||||
| Pump -Jet Mixer | P/C | Option 1 | Option 2 | P | N | ||
| Option | m3/h | Pipe | Circle | Dry pump | Sub-Pump | kw | Nozzle |
| HM/JM/P.JM | 20 | P | C | D | S | ….... | ….... |
| HM/JM/P.JM | 40 | P | C | D | S | ….... | ….... |
| HM/JM/P.JM | 60 | P | C | D | S | ….... | ….... |
| HM/JM/P.JM | 80 | P | C | D | S | ….... | ….... |
| HM/JM/P.JM | 100 | P | C | D | S | ….... | ….... |
| HM/JM/P.JM | 120 | P | C | D | S | ….... | ….... |
| HM/JM/P.JM | 140 | P | C | D | S | ….... | ….... |
Note: The size of products can be modified depend on the kind of TSS, water…
AIR MIXER

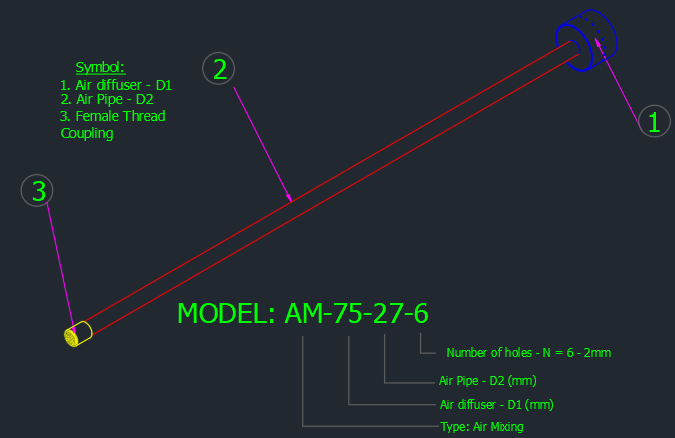

| MODEL: AM – 75 - 27 - 6 | |
| AM | Air Mixer |
| 75 | Diameter of air diffusing head – D1 (mm) |
| 27 | Diameter of air leading pipe– D2 (mm) |
| 6 | Quantity of air diffusing holes – N |
| Type | D1-mm | D2-mm | N | Spec of Product |
| AM | 60 | 21 | 6 | Model: AM-D1-D2-N |
| AM | 90 | 27 | 12 | Material: SS304 |
| AM | 114 | 34 | 18 |
