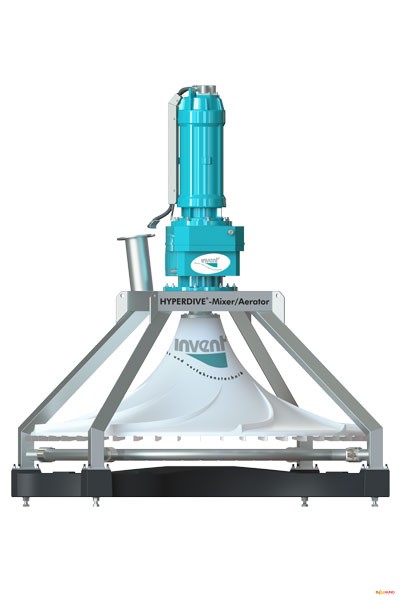

LINUS HYPERMIXER

LINUS HyperMixer – High-Performance Mixing System

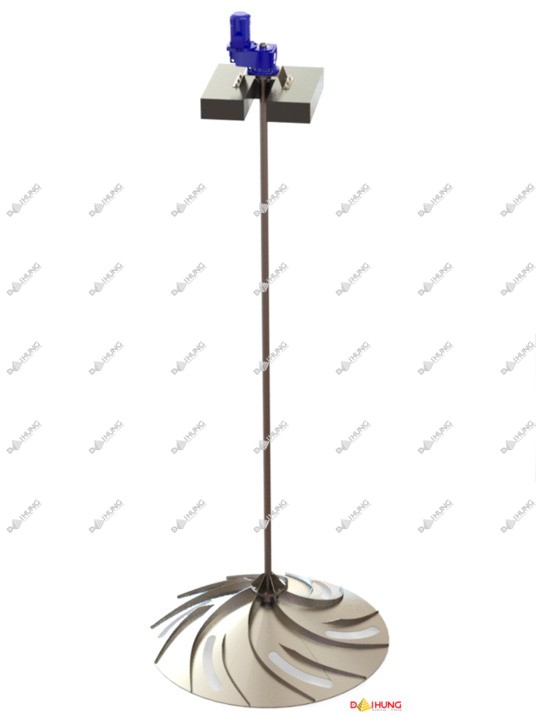

Working principle

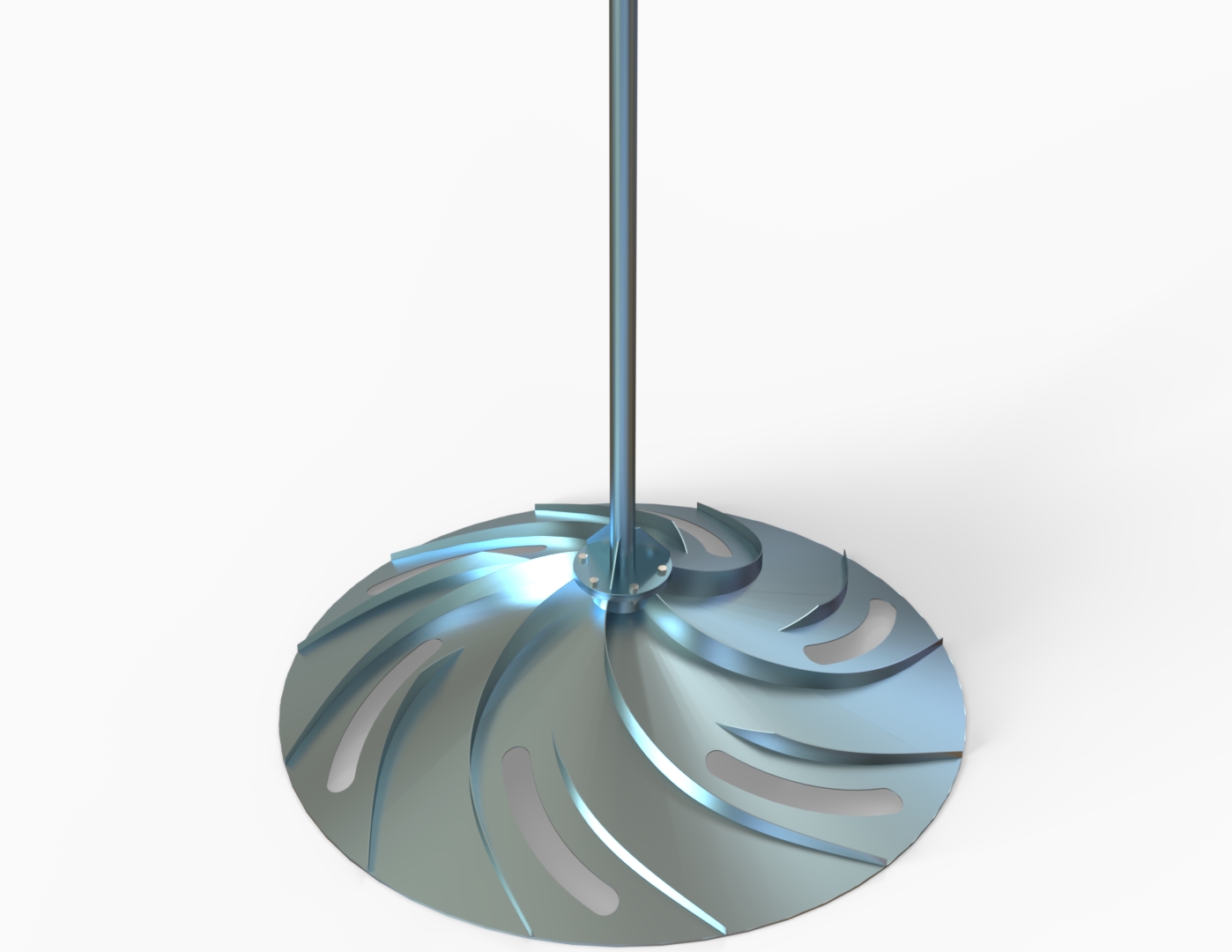

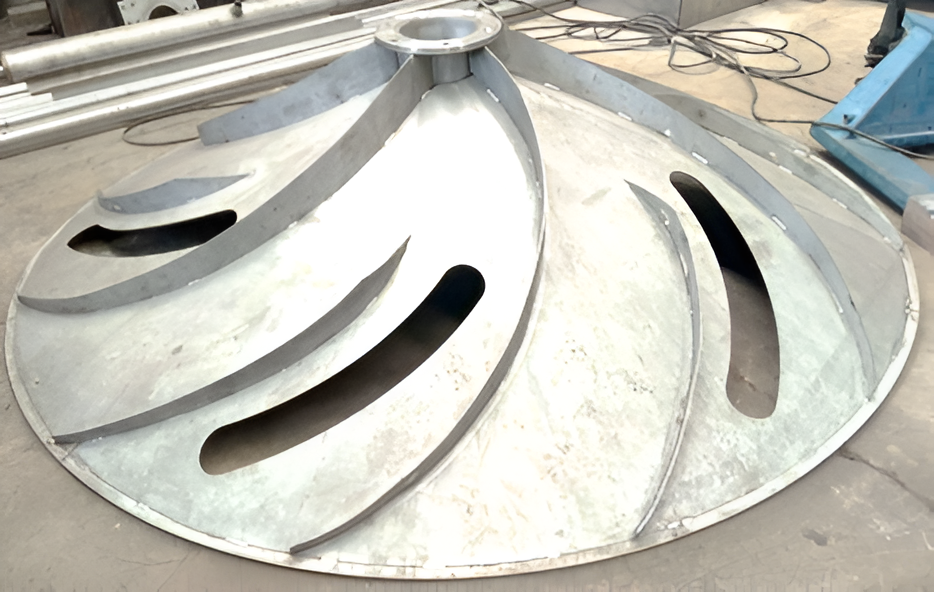

-LINUS is a mixer with a special helical shape consisting of 12 blades, suitable for the function of stirring to prevent sedimentation of the bottom of the tank or increase the ability to dissolve oxygen in water.
-LINUS is controlled with low speed depending on the function or design to ensure the highest efficiency.

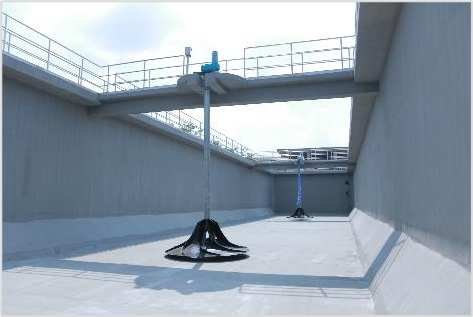

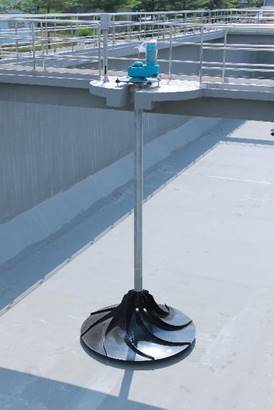

-When operating, LINUS can form convection currents from the top and spread out all over the bottom area of the  tank.

Advantage of the product
-The optimized design to maintain a convection current in a certain trajectory that creates the slide of water velocities on the bottom of the tank.
-With the combination of dissolution of oxygen in water, LINUS increases the duration and distance of air in water in order to increase the oxygen solubility in water by 1.2 - 1.5 times.
-LINUS has an optimized geometrically design to create maximum Torque to lowest energy consumption (< 2w/m3) compared to similar functional devices.

Device selection

Tank size
Fluids

Q&A

-> An industrial exhaust fan is designed to remove air, heat, and fumes from a workspace, while a centrifugal fan uses centrifugal force to move air efficiently through ducts or systems. Centrifugal fans are commonly used in dust collection and ventilation systems requiring high pressur

-> A cyclone dust collector primarily separates larger dust particles using centrifugal force. It is not effective for fine particles like PM2.5. To remove PM2.5 efficiently, a bag filter or electrostatic precipitator should be used after the cyclone stage

-> A gas scrubber is typically used to treat acidic or chemical exhaust gases such as SO₂, HCl, NH₃, and VOCs. Depending on the scrubbing solution and design, it can also capture particulates and neutralize harmful emissions from industrial processes

-> An industrial mixer is suitable for surface or tank-level mixing in chemical or wastewater treatment systems, while a submersible mixer is ideal for continuous agitation in deep tanks or equalization basins to prevent sedimentation

-> A high-quality submersible mixer typically lasts between 5 to 10 years, depending on material quality, operating conditions, and maintenance frequency. Using stainless steel materials and regular servicing can extend the mixer’s lifetime

-> A belt filter press can process between 5 to 50 cubic meters of sludge per day, depending on sludge concentration, belt width, and machine capacity. Proper conditioning and polymer dosing improve dehydration efficiency

Technical Specifications
  • Number of blades (N): 12
  • Material: SS304 or SS400 with Epoxy coating
  • Mixing flow rate (Q): Variable, depending on operating conditions
  • Rotational speed (n): 12 – 110 rpm
  • Power range (P): 0.37 kW – 300 kW


Model N
rpm		 Q
m3/s		 Model N
rpm		 Q
m3/s		 Model N
rpm		 Q
m3/s		 Model N
rpm		 Q
m3/s		 Model N
rpm		 Q
m3/s
LINUS
Dia:  500		 30 0,009 LINUS
Dia:  1000		 30 0,079 LINUS
Dia:  1500		 30 0,268 LINUS
Dia:  2000		 25 0,529 LINUS
Dia:  2500		 12 0,496
50 0,016 50 0,132 50 0,446 30 0,635 25 1,034
80 0,026 65 0,172 65 0,580 40 0,847 30 1,241
110 0,036 80 0,210 80 0,714 50 1,059 40 1,655

Note: Each product is designed and manufactured to suit each specific application.

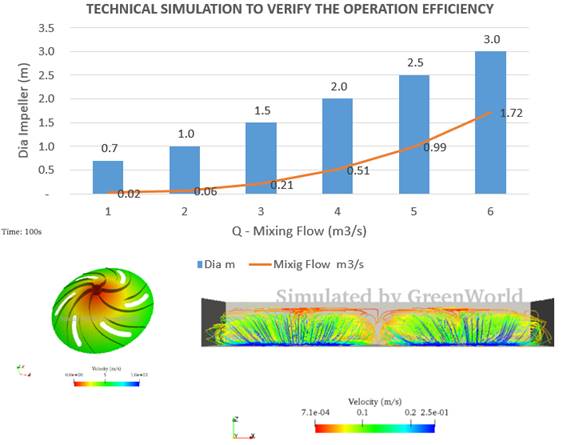

Testing LINUS MIXER


Model Spec of Product
Name Dia N Air Series
mm rpm Dry motor Sub- Motor
LINUS 500 10 - 45 A D S

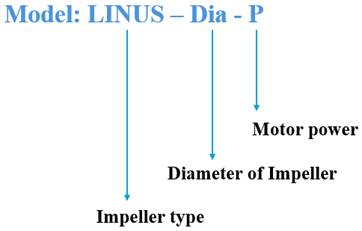

  • Model: LINUS-Dia-P-A-D/S
  • Type Hyper mixer
  • Low propulsion energy < 2 W/m3
  • S.F > 1.8
  • Material: SS304, SS400- Epoxy; FRP
LINUS 1.000 10 - 45 A D S
LINUS 1.500 10 - 45 A D S
LINUS 2.000 10 - 45 A D S
LINUS 2.500 10 - 45 A D S
LINUS 3.000 10 - 45 A D S
Note: Each product is designed and manufactured to suit each specific application.
MODEL: LINUS-1200-20-1,5 – A-D/S
Hyper mixer LINUS
Impeller diameter– Dia (mm) 1200
Speed – N (rpm) 20
Power – P (kw) 1,5
Combining with the use of air diffuser A

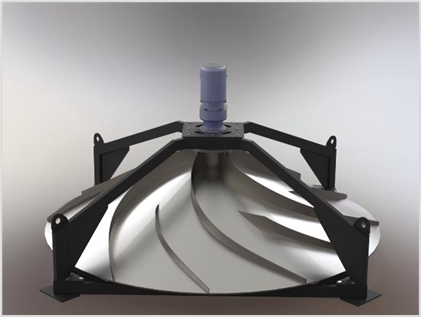

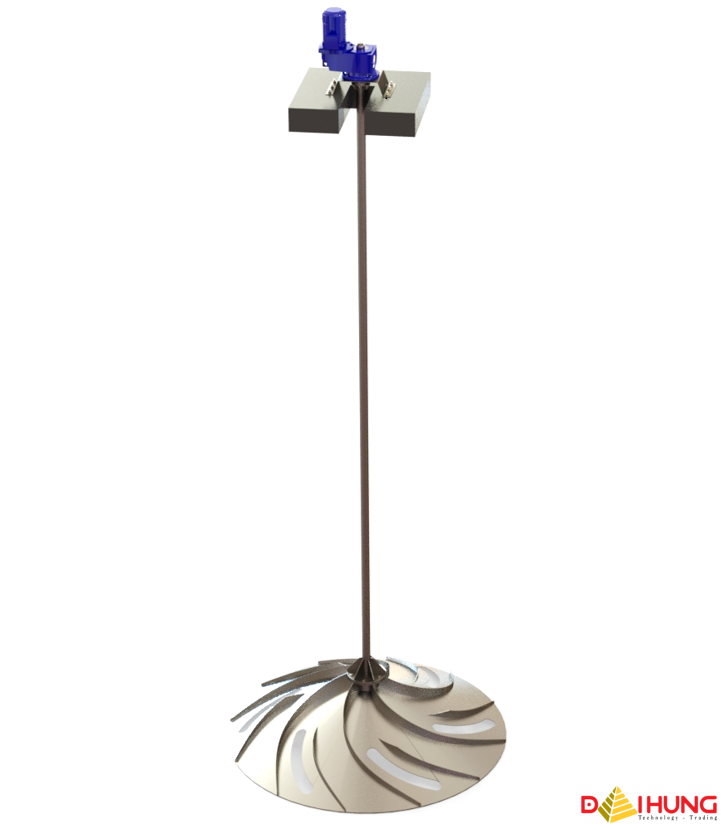

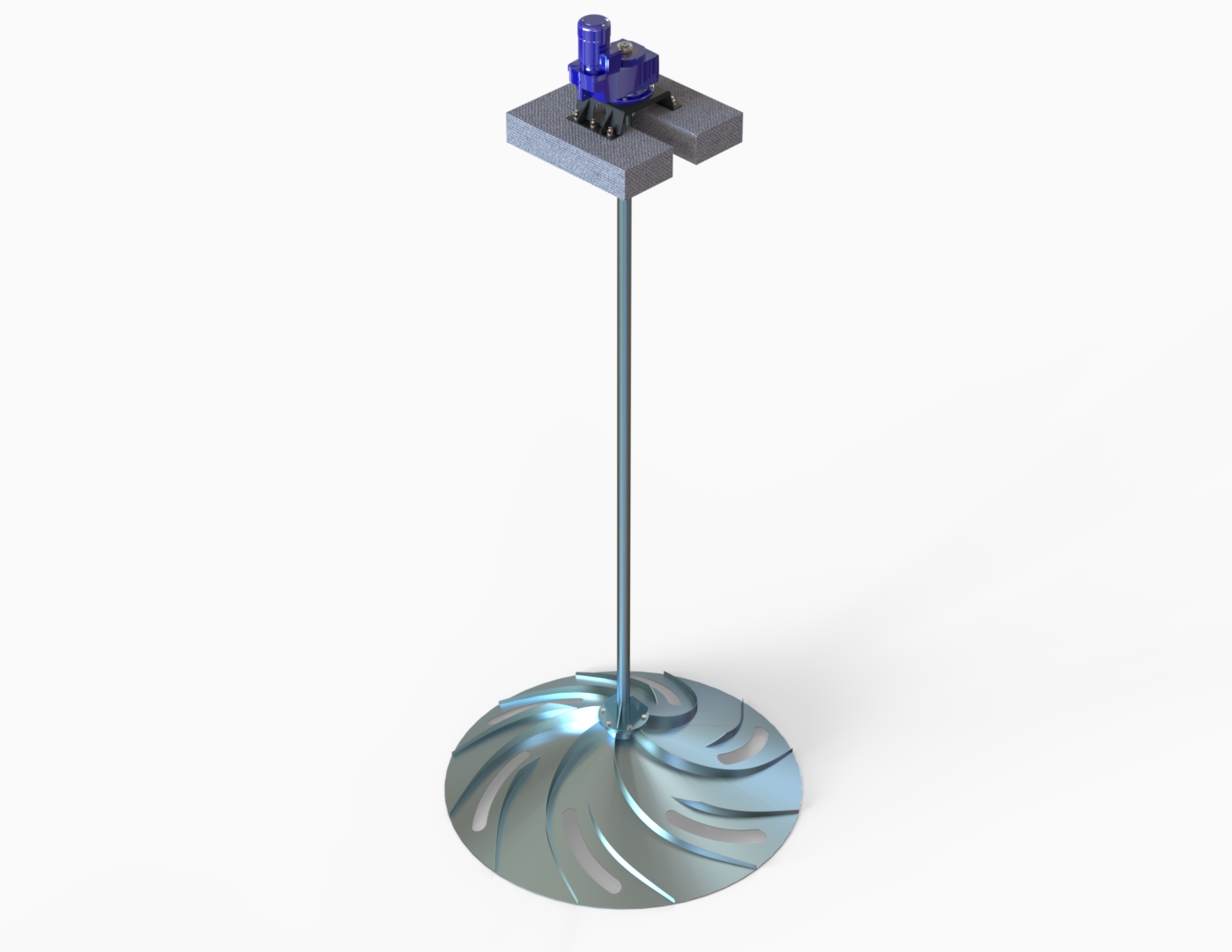

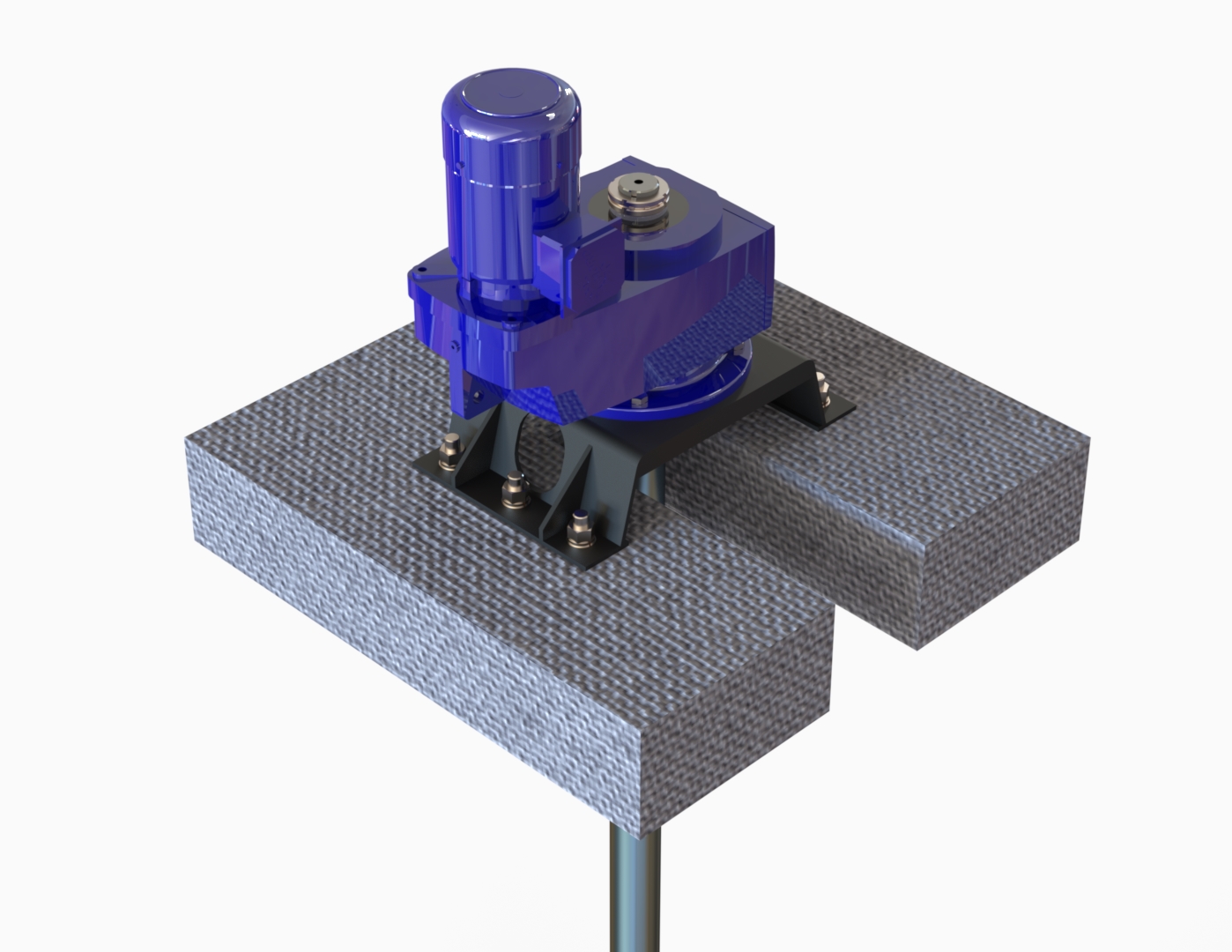

Dry installation series – Dry Motor D
Submersible installation series – Sub-Motor S
Note: Each product is designed and manufactured to suit each specific application.
