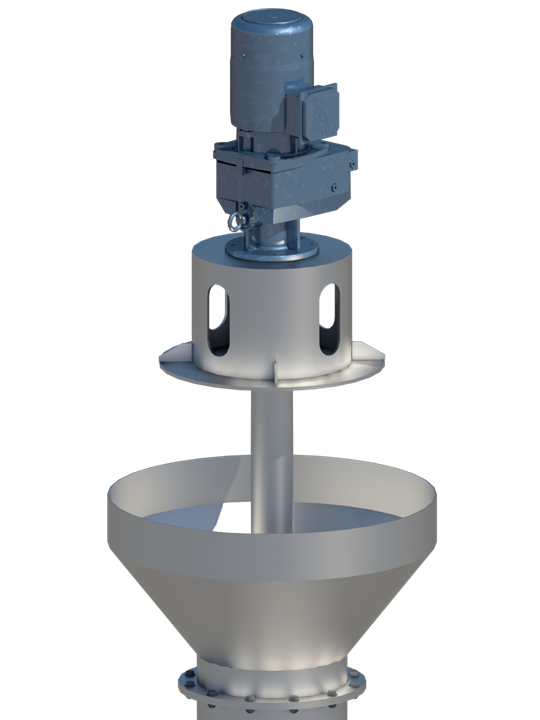

NYX - FLUFFY RESPONSE SYSTEM

Operating Principle
The NYX system is a high-efficiency dual-stage mixer designed for advanced coagulation and flocculation processes. It features three vertically arranged impeller layers that create both intensive turbulence and gentle mixing:
Stage 1: Generates maximum turbulence through centrifugal force to initiate rapid particle interaction.
Stage 2: Maintains controlled mixing to promote stable floc growth and uniform distribution throughout the tank.

Applications
Mixing chemicals in liquid–solid or liquid–gas form.

Replacing conventional coagulation–flocculation systems in wastewater treatment.

Suitable for both water supply and wastewater treatment systems.

Key Advantages
Optimized impeller design disrupts vortex formation and improves hydraulic efficiency.

High-torque geometry ensures maximum momentum transfer with stable performance.

Ultra-low energy consumption, outperforming conventional flocculation technologies.

Device selection

Tank size
Fluids

Q&A

-> An industrial exhaust fan is designed to remove air, heat, and fumes from a workspace, while a centrifugal fan uses centrifugal force to move air efficiently through ducts or systems. Centrifugal fans are commonly used in dust collection and ventilation systems requiring high pressur

-> A cyclone dust collector primarily separates larger dust particles using centrifugal force. It is not effective for fine particles like PM2.5. To remove PM2.5 efficiently, a bag filter or electrostatic precipitator should be used after the cyclone stage

-> A gas scrubber is typically used to treat acidic or chemical exhaust gases such as SO₂, HCl, NH₃, and VOCs. Depending on the scrubbing solution and design, it can also capture particulates and neutralize harmful emissions from industrial processes

-> An industrial mixer is suitable for surface or tank-level mixing in chemical or wastewater treatment systems, while a submersible mixer is ideal for continuous agitation in deep tanks or equalization basins to prevent sedimentation

-> A high-quality submersible mixer typically lasts between 5 to 10 years, depending on material quality, operating conditions, and maintenance frequency. Using stainless steel materials and regular servicing can extend the mixer’s lifetime

-> A belt filter press can process between 5 to 50 cubic meters of sludge per day, depending on sludge concentration, belt width, and machine capacity. Proper conditioning and polymer dosing improve dehydration efficiency

-> Yes, a DAF system is highly effective in separating oil, grease, and suspended solids from food-processing wastewater. By injecting microbubbles, it floats contaminants to the surface for removal, improving overall treatment efficiency
Application
  • Mixing chemical in form of Liquid – Solid or Liquid – Gas.
  • Replacing conventional coagulation – flocculation technology in wastewater treatment.
  • Applying in supply water / wastewater treatment system.

Model
 Spec of Mixer

Name D1 N
mm Impeller
NYX-500 500 2 - 4

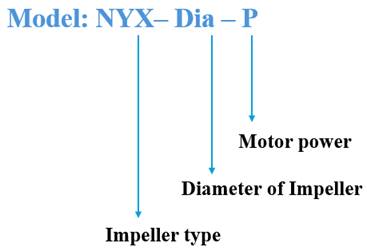

  • Model: NYX-D1-N
  • Material: SS304, SS400-FRP
  • Type: Nyx Mixer
  • Power: 0.37kw - 15kw
  • Out speed: 25 - 45 rpm
  • Application: Flocculation &  Coagulation
  • For reaction - Flocculation
NYX-800 800 2 - 4
NYX-1000 1.000 2 - 4
NYX-1250 1.250 2 - 4
NYX-1500 1.500 2 - 4
NYX-1800 1.800 2 - 4
NYX-2000 2.000 2 - 4

Note: Each product is designed and manufactured to suit each specific application.

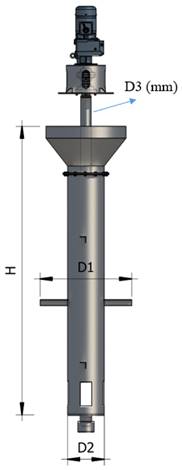

MODEL: NYX-1200/300/60-3-20-1,5
NYX Mixer NYX
Blade diameter – D1 (mm) 1200/300/60
Class 1 shaft diameter – D2 (mm) D1/D2/D3
Class 2 shaft diameter – D3 (mm)
Number of blades – N 3
Velocity – n (rpm) 20
Power consumption – P (kw) 1,5

Note: Each product is designed and manufactured to suit each specific application.
