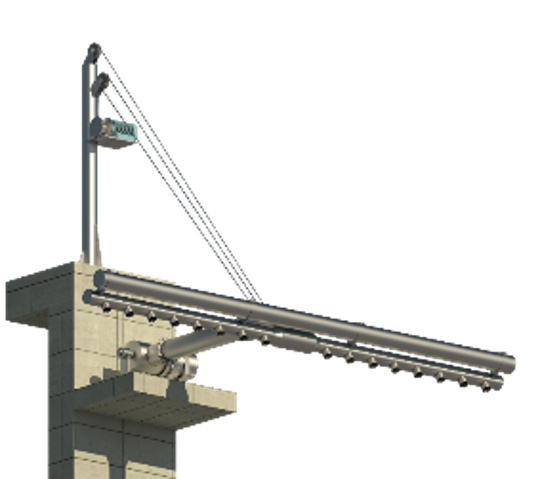

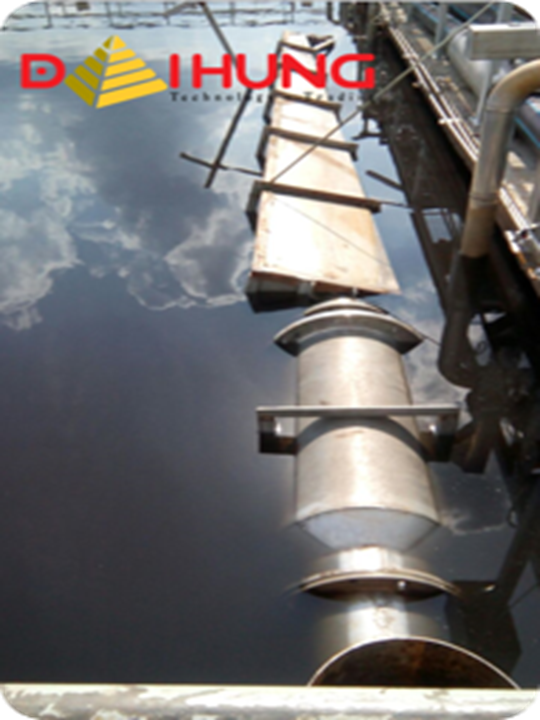

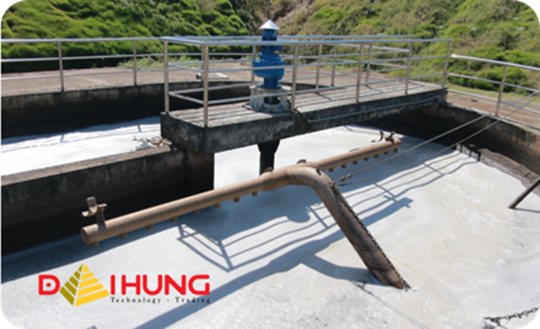

DECANTER – FLOAT TYPE
Float type Decanter is designed with sensor, pneumatic and PLC control to control the water collector to collect output water through the next stage of treatment.
Application
Float type Decanter is designed with sensor, pneumatic and PLC control to control the water collector to collect output water through the next stage of treatment.
Application
•Apply for biological tank with flexible water level;

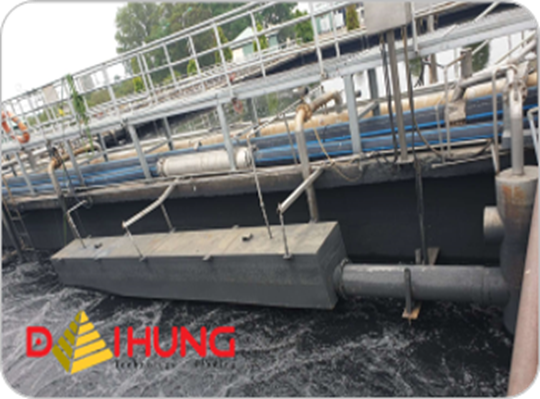

DECANTER – FIXED TYPE
Fixed Decanter system is designed with pneumatic control and PLC, to control the water trough to collect input water through the next stage of treatment.
Application

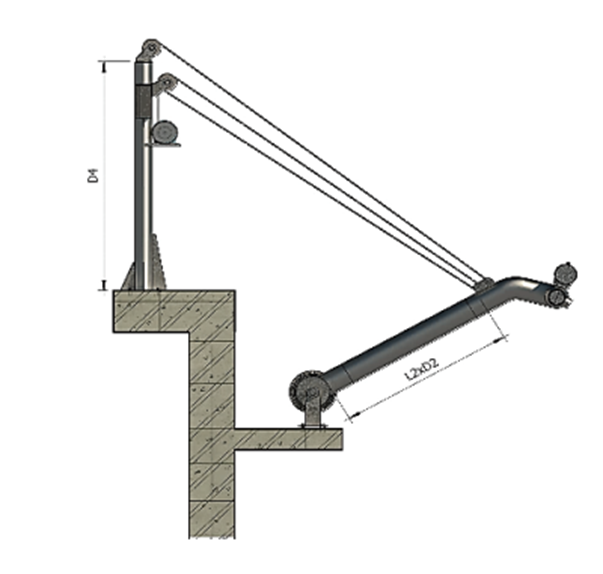

| Model | Spec | FLowrate | L2 | D2 |
| Name | m3/h | m | mm | |
| S.Decanter – 120Fl | Power: 0.25-0.55kW Operation: Controlled by PLC and sensor Application: Flexible water level | 120 | 2.1 | 90 |
| S.Decanter – 250Fl | 250 | 2.9 | 90 | |
| S.Decanter – 400Fl | 400 | 5.0 | 125 | |
| S.Decanter – 600Fl | 600 | 5.0 | 125 | |
| S.Decanter – 10000Fl | 1.000 | 5.0 | 150 | |
| S.Decanter – 1400Fl | 1.600 | 5.0 | 150 | |
| S.Decanter – 2000Fl | 2.000 | 5.0 | 200 |
DECANTER – FIXED TYPE
Fixed Decanter system is designed with pneumatic control and PLC, to control the water trough to collect input water through the next stage of treatment.
Application
•Applying for biological tank with fixed water level;

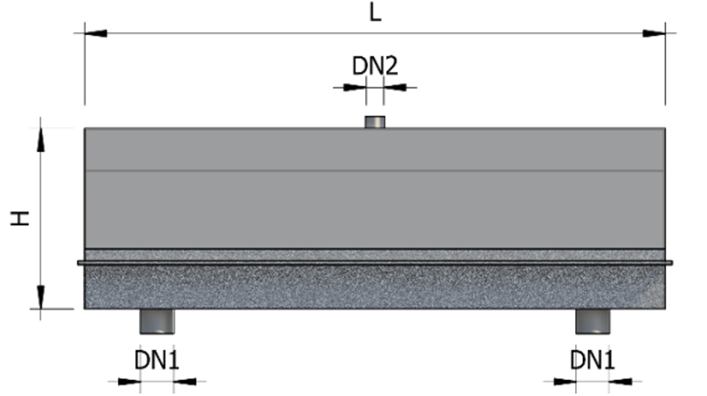

| Model | Spec | Flowrate | L | DN1 | n | DN2 |
| Name | m3/h | mm | mm | mm | ||
| S.Decanter – 120F | Power: 0.37kW Operation: controlled by pneumatic and PLC Application: fixed water level | 120 | 2000 | 150 | 2 | 42 |
| S.Decanter – 250F | 250 | 3000 | 150 | 3 | 42 | |
| S.Decanter – 400F | 400 | 4000 | 200 | 3 | 42 | |
| S.Decanter – 600F | 600 | 6000 | 200 | 4 | 60 | |
| S.Decanter – 10000F | 1.000 | 8000 | 250 | 4 | 60 | |
| S.Decanter – 1400F | 1.600 | 10000 | 250 | 6 | 60 | |
| S.Decanter – 2000F | 2.000 | 12000 | 250 | 8 | 60 |
