SLUDGE SCRAPER

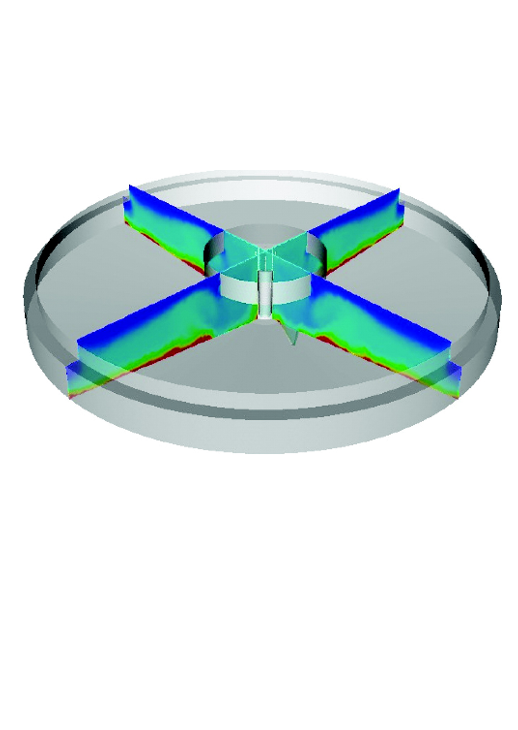

Sludge scrapers for sedimentation tanks of all types are very important parts of determining treatment efficiency and operating chemical costs. Therefore, the supplier must have experience in Design – Processing –  Operation of the system to identify and overcome product defects during operation.

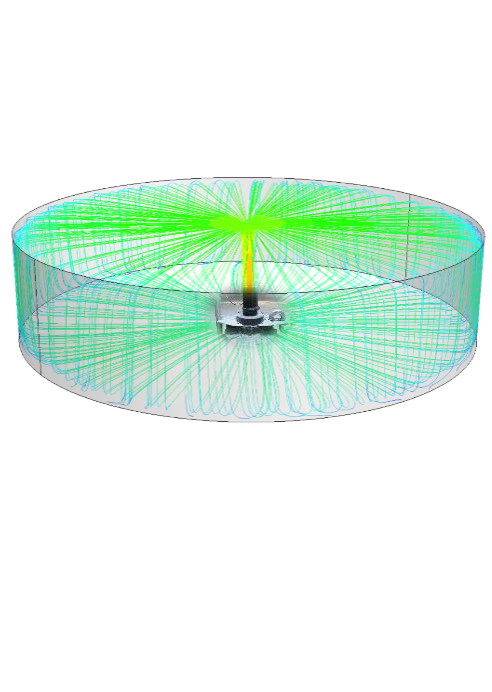

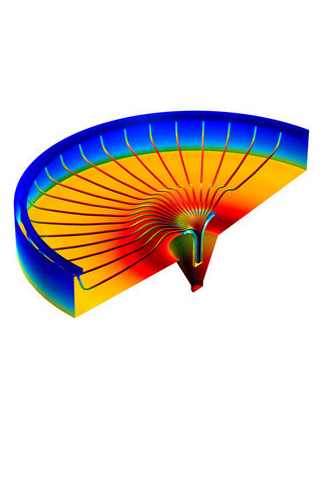

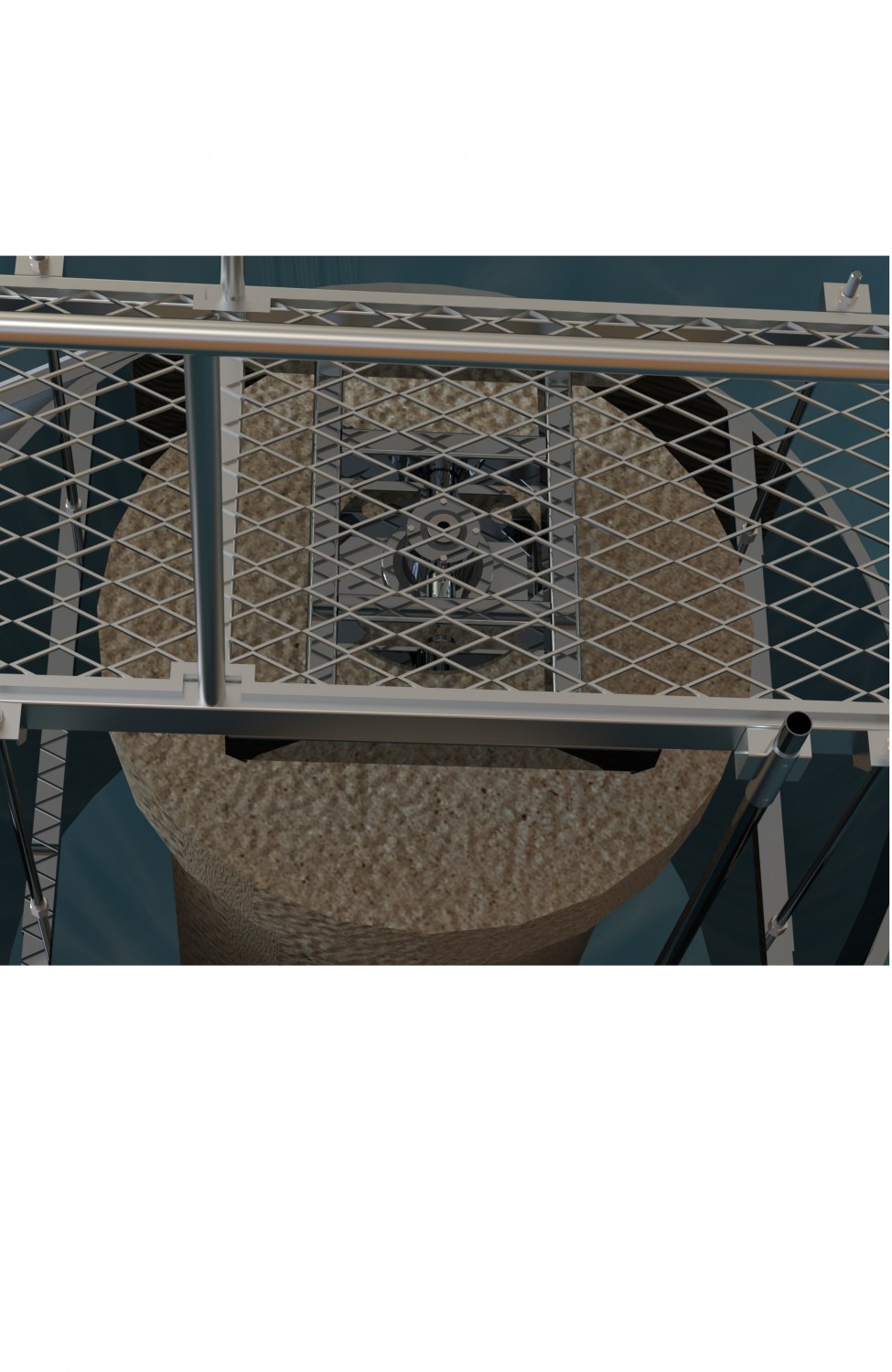

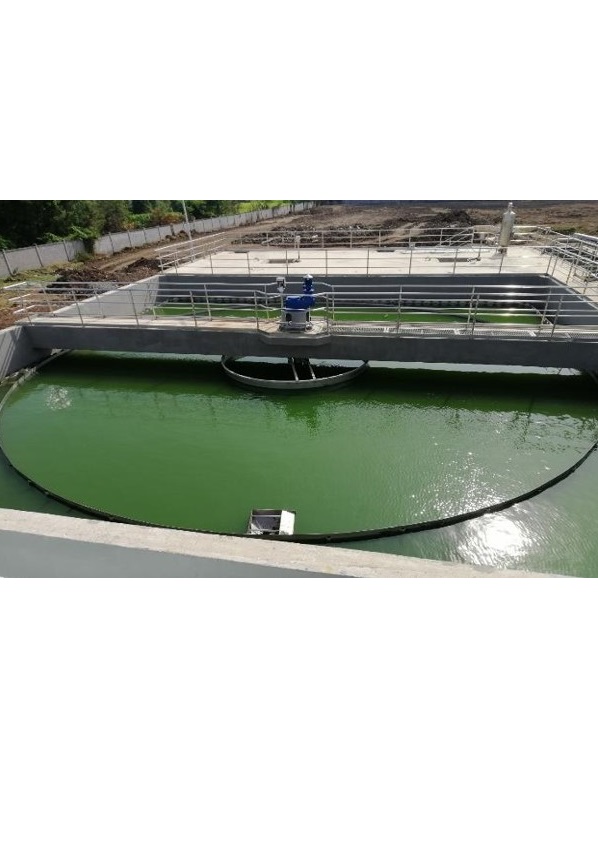

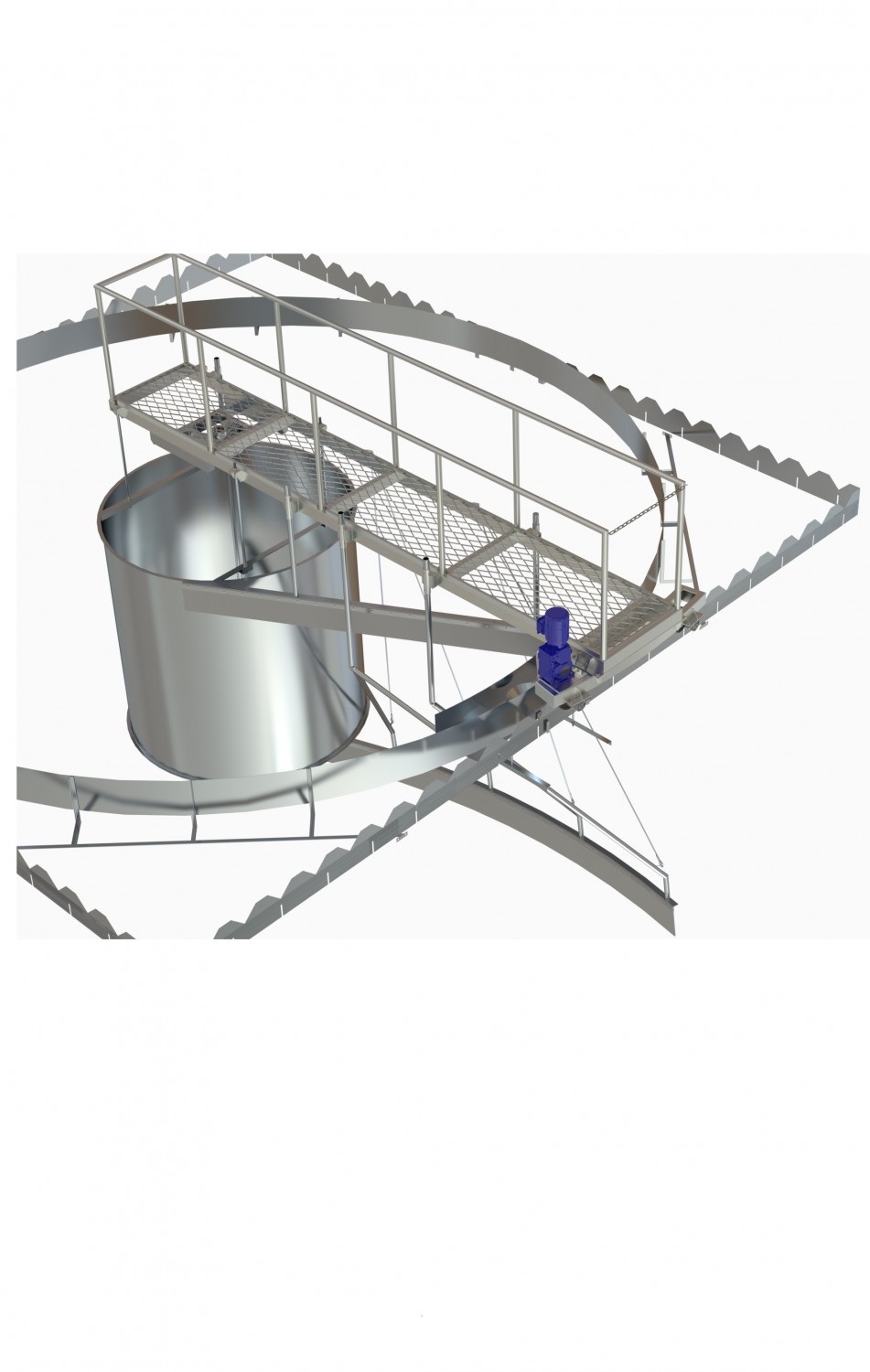

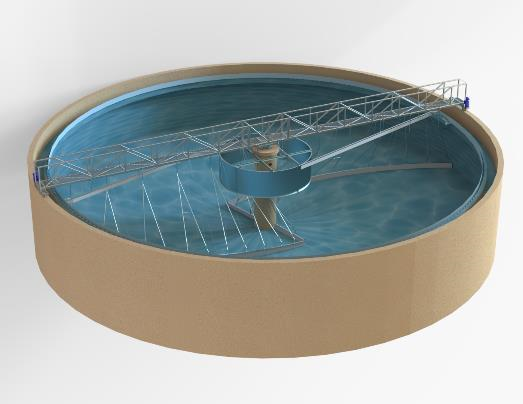

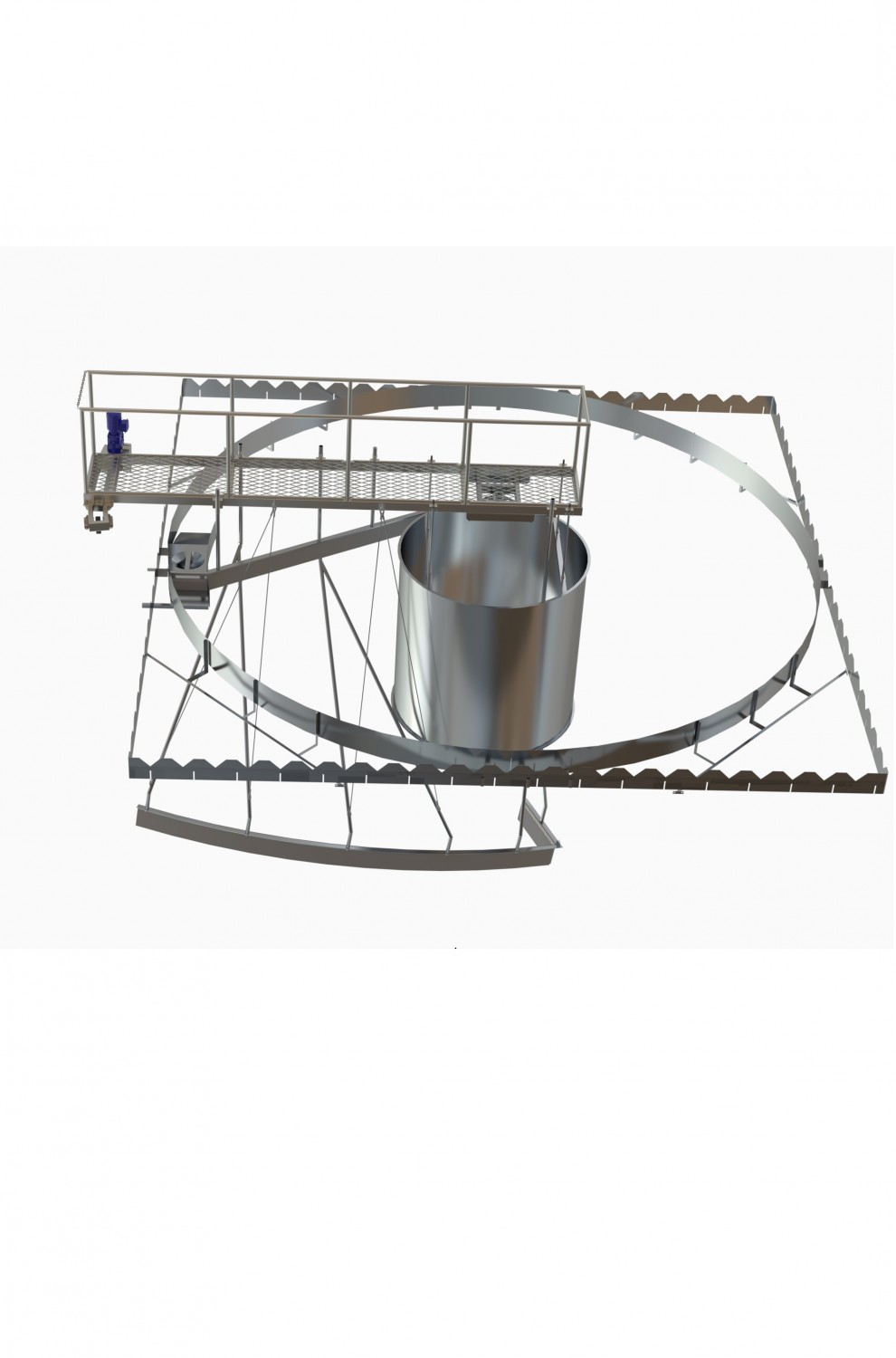

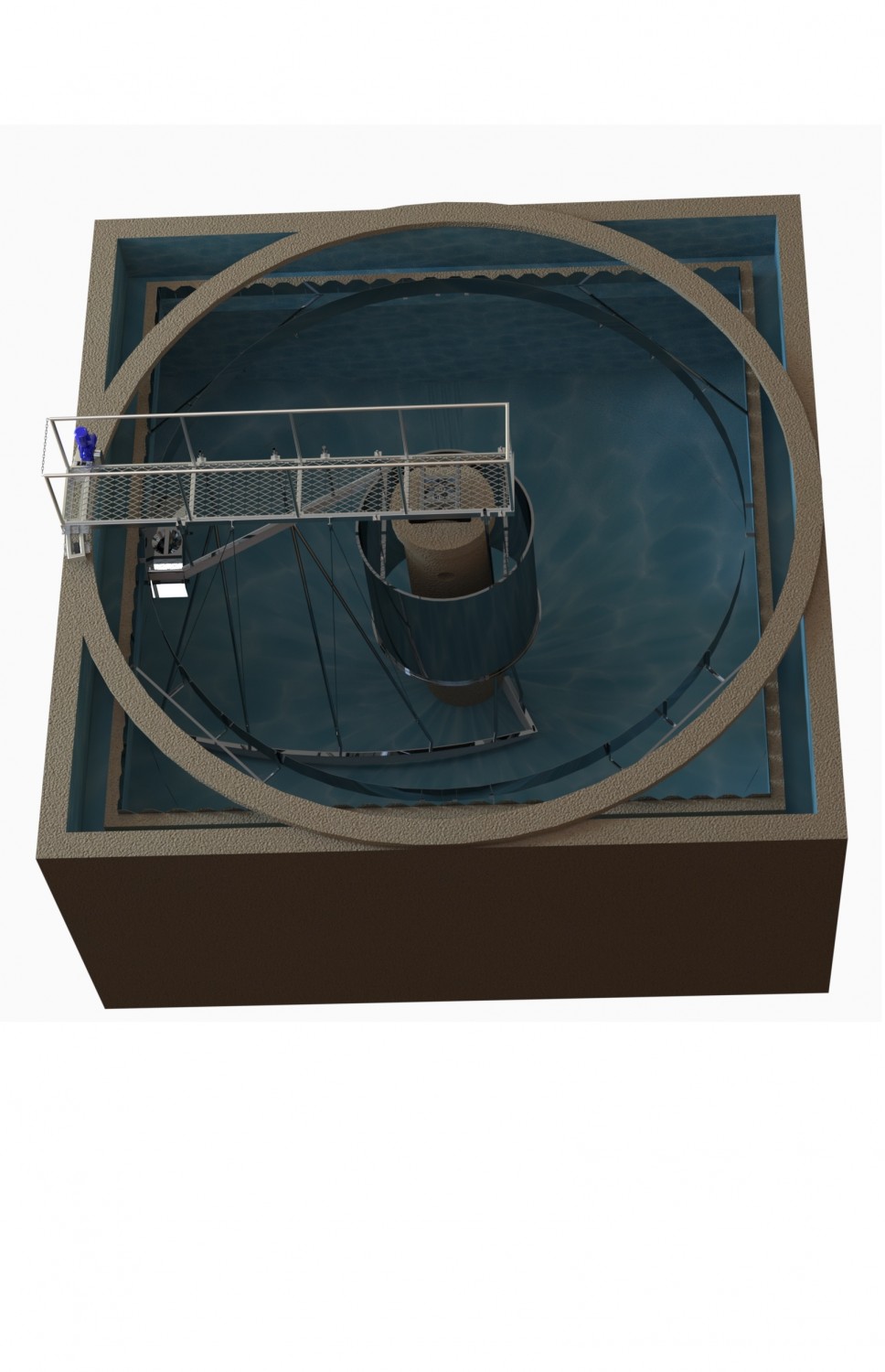

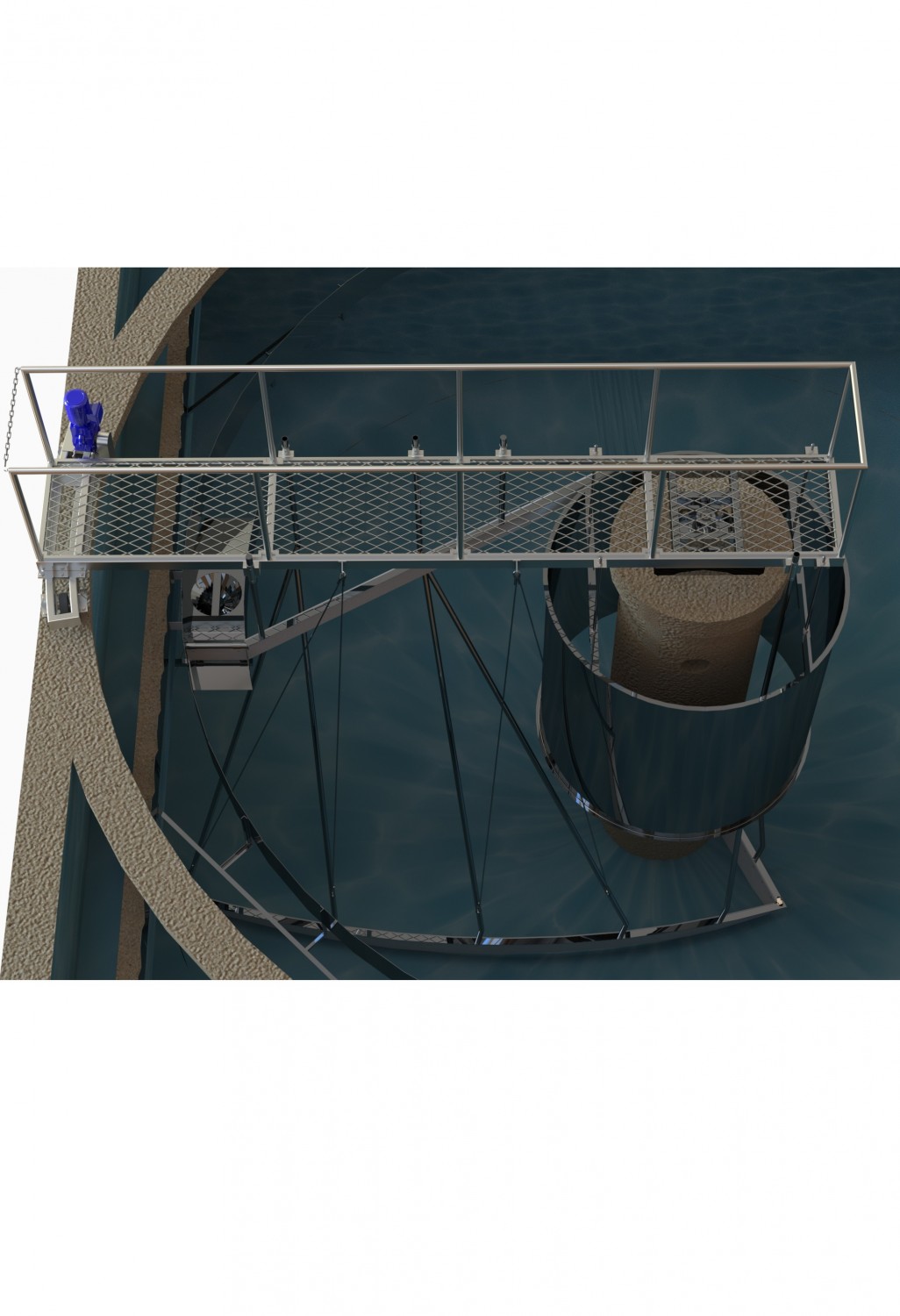

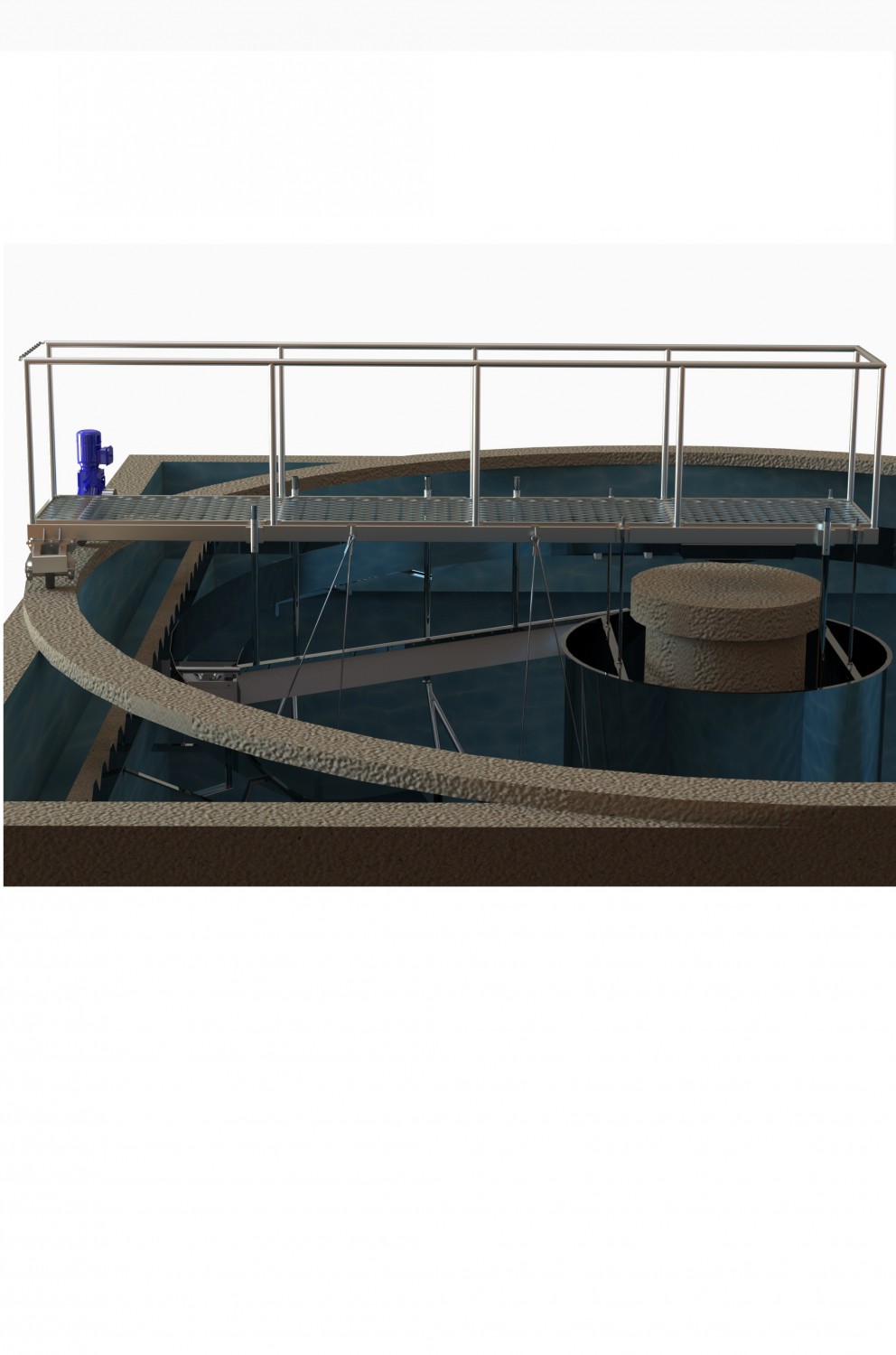

PERIPHERAL DRIVE SCRAPER
Operation principle:
  • The scraper is fixed at one end at the tank center, the other end is installed with a motor moving in a circular path;
  • The motor speed is calculated appropriately to ensure that it does not affect the settling process;
  • The bottom scraper is installed flexibly to correct for changes or errors in geometry during construction;
  • Depending on the type of industry and the nature of the settled sludge, a skimmer is installed to remove the floating part of the sludge that is difficult to settle or cannot settle;
  • The bridge is designed to ensure convenience in maintenance - replacement.
Application:
Circular or square tank with diameter below 16 m.


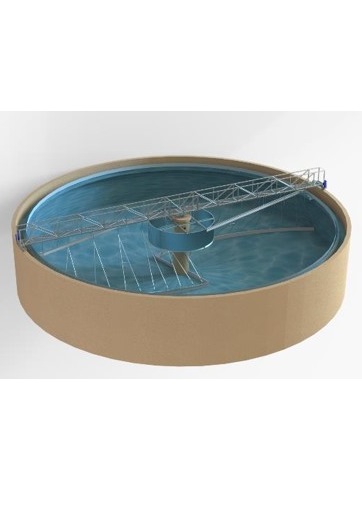

DIAMETRAL PERIPHERAL DRIVE SCRAPER
Operation principle:
  • The center of the scraper is fixed at the center of the tank, with motors installed in the both side of the bridge that moves in a circular path;
  • The motor speed is calculated appropriately to ensure that it does not affect the settling process;
  • The bottom scraper is installed flexibly to correct for changes or errors in geometry during construction;
  • Depending on the type of industry and the nature of the settled sludge, a skimmer is installed to remove the floating part of the sludge that is difficult to settle or cannot settle;
  • The bridge is designed to ensure convenience in maintenance - replacement.
Application:
Circular or square tank with diameter above 14 m.

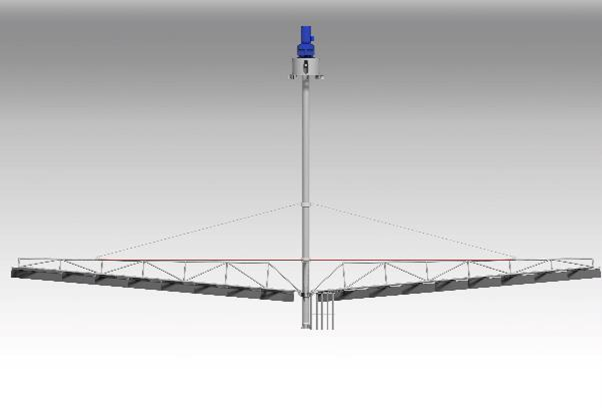

SCRAPER WITH CENTRAL DRIVE
Operation principle:
  • The scraper is established a unified system including: central pipe, central pillar, bottom scraper, skimmer and the fixed motor at the center of the bridge.
  • The motor operates through the central pillar, rotating two symmetrical scraper at the bottom of the tank.
  • The motor speed is calculated appropriately to ensure that it does not affect the settling process;
  • The bottom scraper is installed flexibly to correct for changes or errors in geometry during construction;
  • Depending on the type of industry and the nature of the settled sludge, a skimmer is installed to remove the floating part of the sludge that is difficult to settle or cannot settle;
  • The bridge is designed to ensure convenience in maintenance - replacement.
Application:
Circular or square tank with diameter above 14 m.

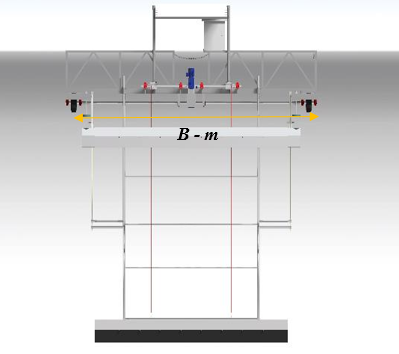

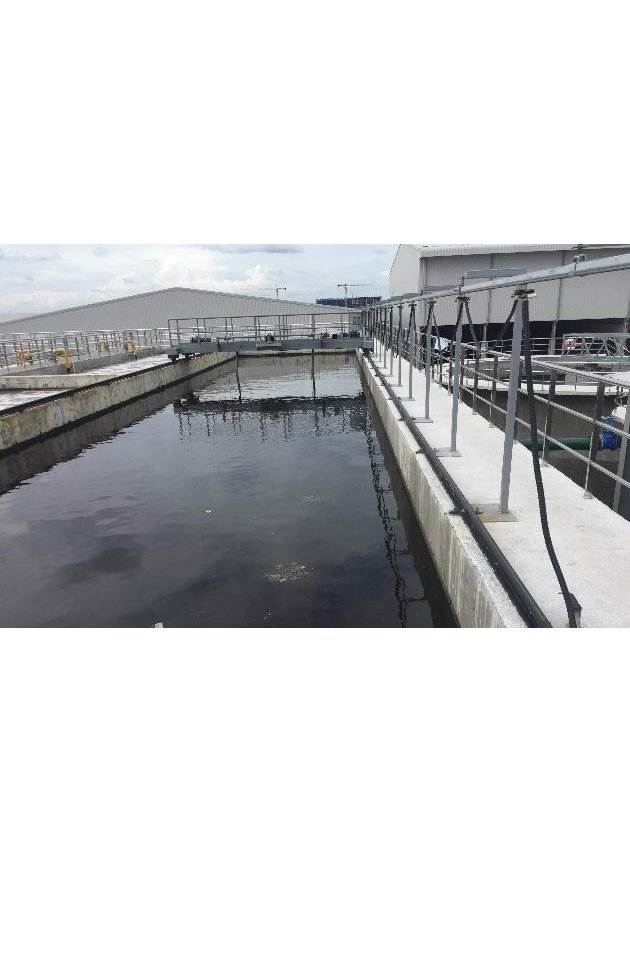

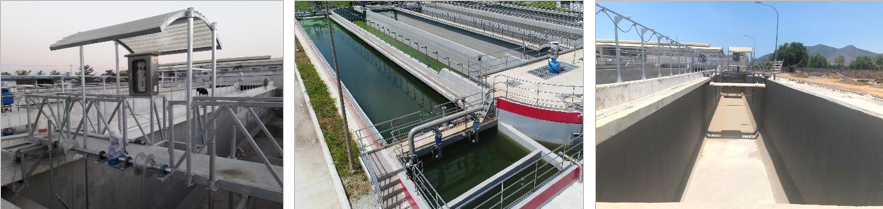

BACKWARD AND FORWARD SCRAPER
Operation principle:
  • The scraper is set up in a unified system including: 2-way moving drive bridge, 2-way moving up-down scraper, fixed motor and control cabinet on the bridge.
  • The bridge moves on the tank wall according to the rails and is controlled by the sensors to detect collisions and change the direction;
  • The motor speed is calculated appropriately to ensure that it does not affect the settling process;
  • The scraper is control its up-down movement by sensor to change the direction
  • The bridge is designed to ensure convenience in maintenance - replacement.
Application:
Horizontal sedimentation tank (rectangular shape), sand settling tank, grease trap….

Device selection

Tank size
Fluids

Q&A

-> An industrial exhaust fan is designed to remove air, heat, and fumes from a workspace, while a centrifugal fan uses centrifugal force to move air efficiently through ducts or systems. Centrifugal fans are commonly used in dust collection and ventilation systems requiring high pressur

-> A cyclone dust collector primarily separates larger dust particles using centrifugal force. It is not effective for fine particles like PM2.5. To remove PM2.5 efficiently, a bag filter or electrostatic precipitator should be used after the cyclone stage

-> A gas scrubber is typically used to treat acidic or chemical exhaust gases such as SO₂, HCl, NH₃, and VOCs. Depending on the scrubbing solution and design, it can also capture particulates and neutralize harmful emissions from industrial processes

-> An industrial mixer is suitable for surface or tank-level mixing in chemical or wastewater treatment systems, while a submersible mixer is ideal for continuous agitation in deep tanks or equalization basins to prevent sedimentation

-> A high-quality submersible mixer typically lasts between 5 to 10 years, depending on material quality, operating conditions, and maintenance frequency. Using stainless steel materials and regular servicing can extend the mixer’s lifetime

-> A belt filter press can process between 5 to 50 cubic meters of sludge per day, depending on sludge concentration, belt width, and machine capacity. Proper conditioning and polymer dosing improve dehydration efficiency

-> Yes, a DAF system is highly effective in separating oil, grease, and suspended solids from food-processing wastewater. By injecting microbubbles, it floats contaminants to the surface for removal, improving overall treatment efficiency

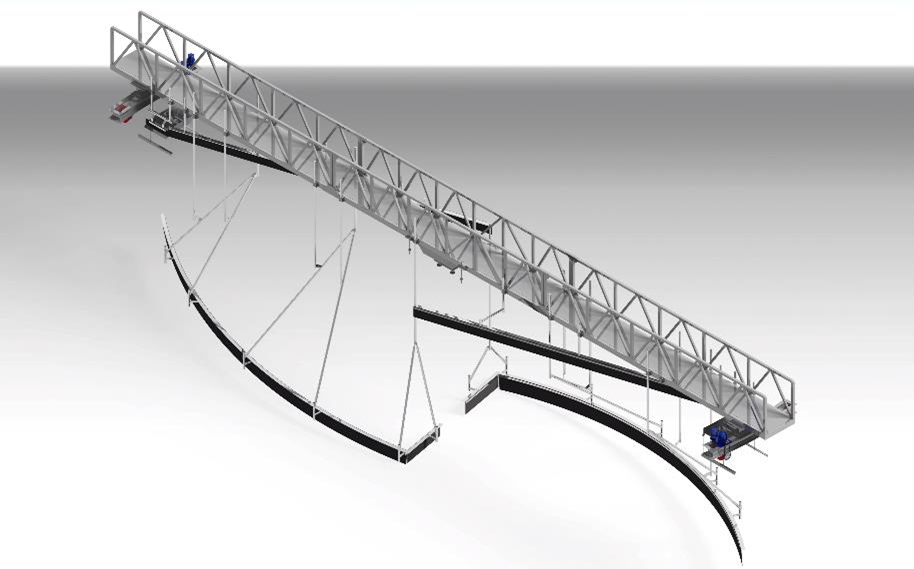

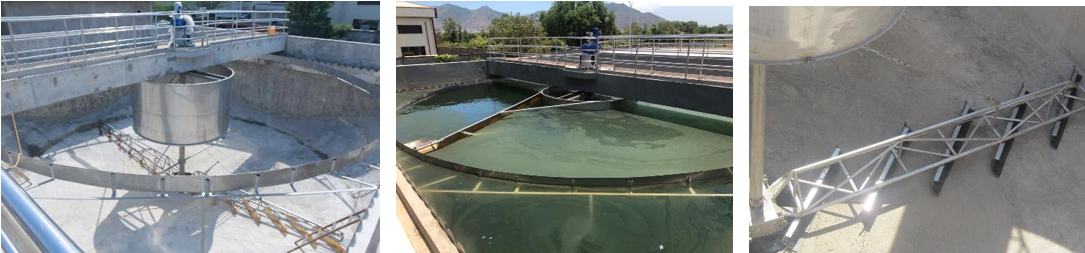

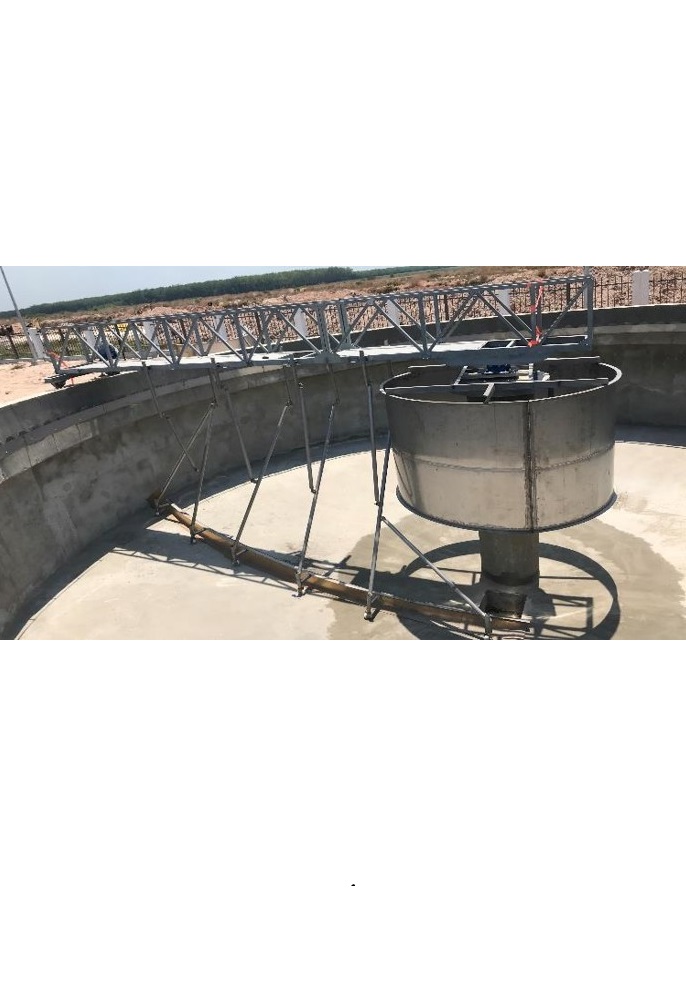

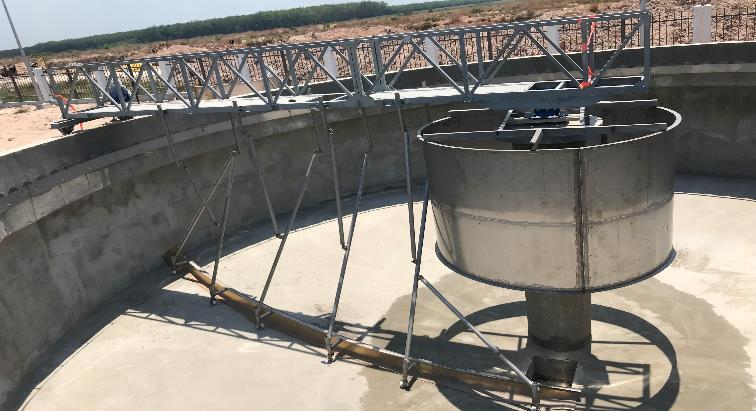

PERIPHERAL DRIVE SCRAPER

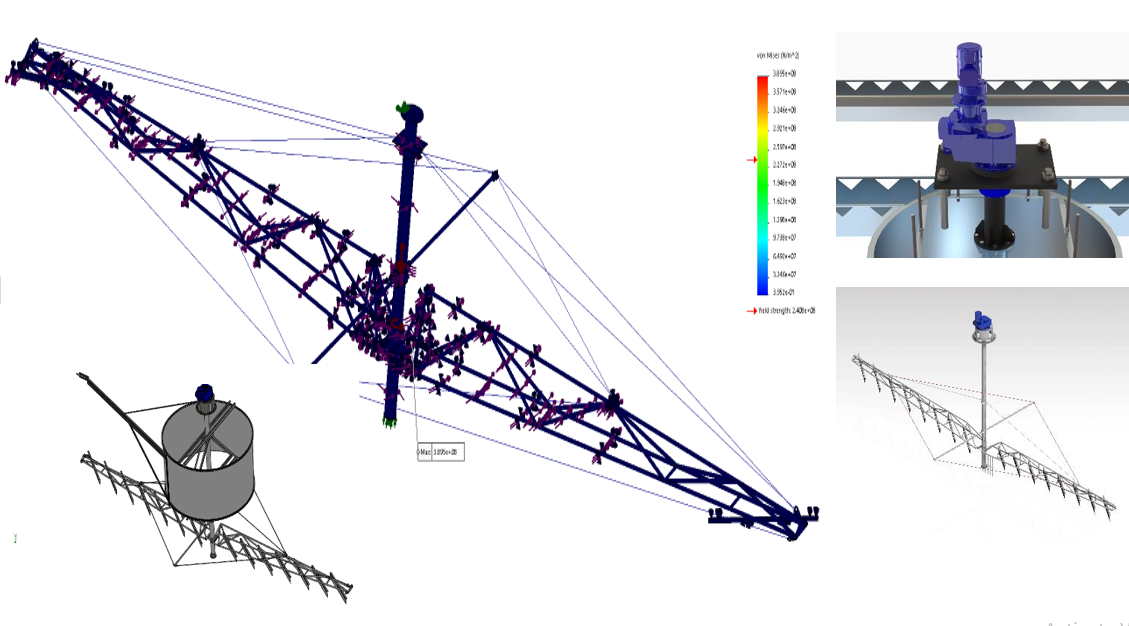

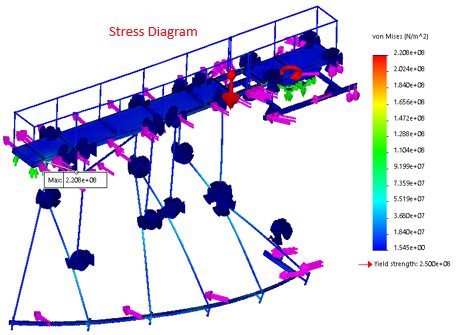

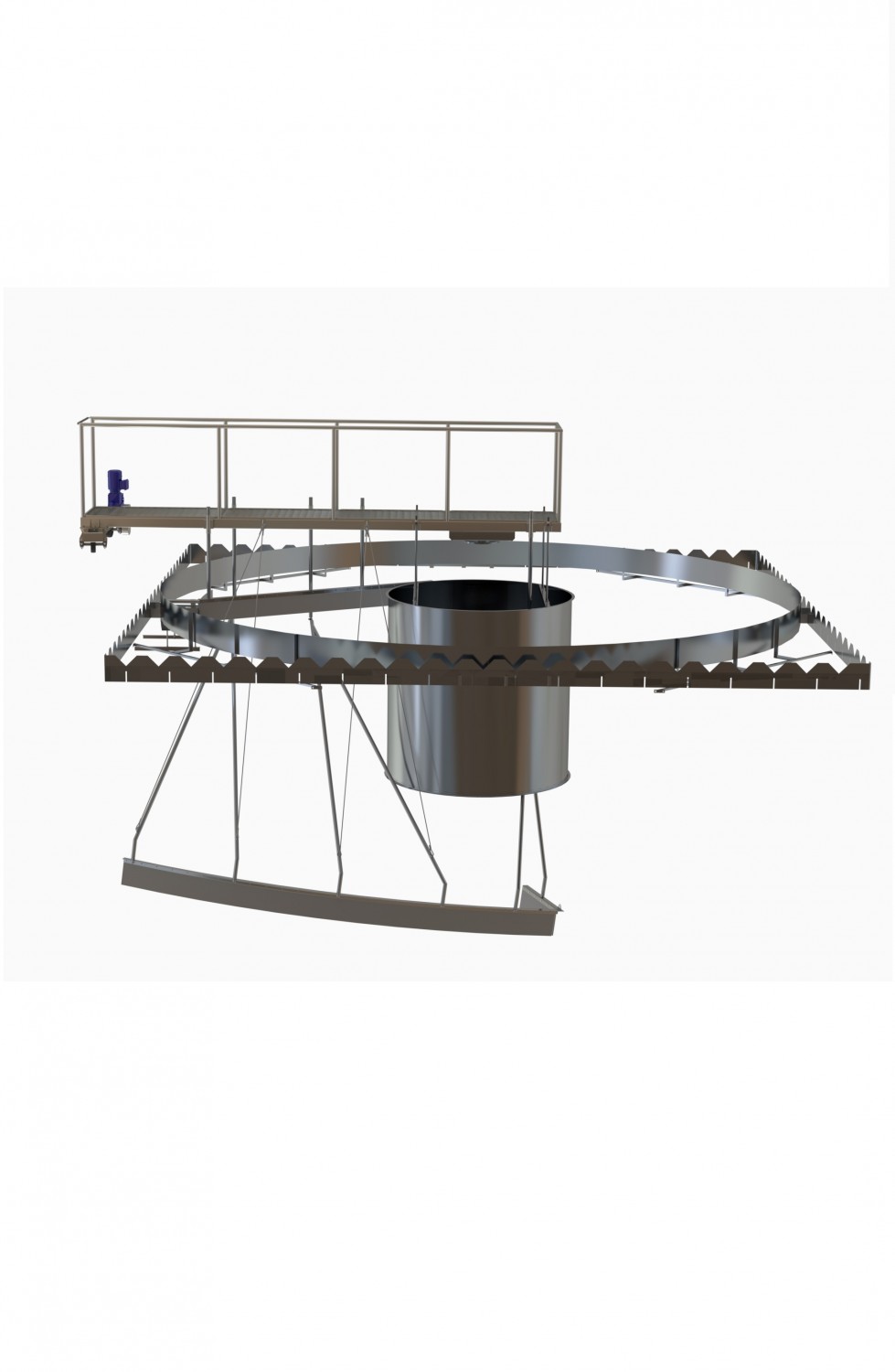

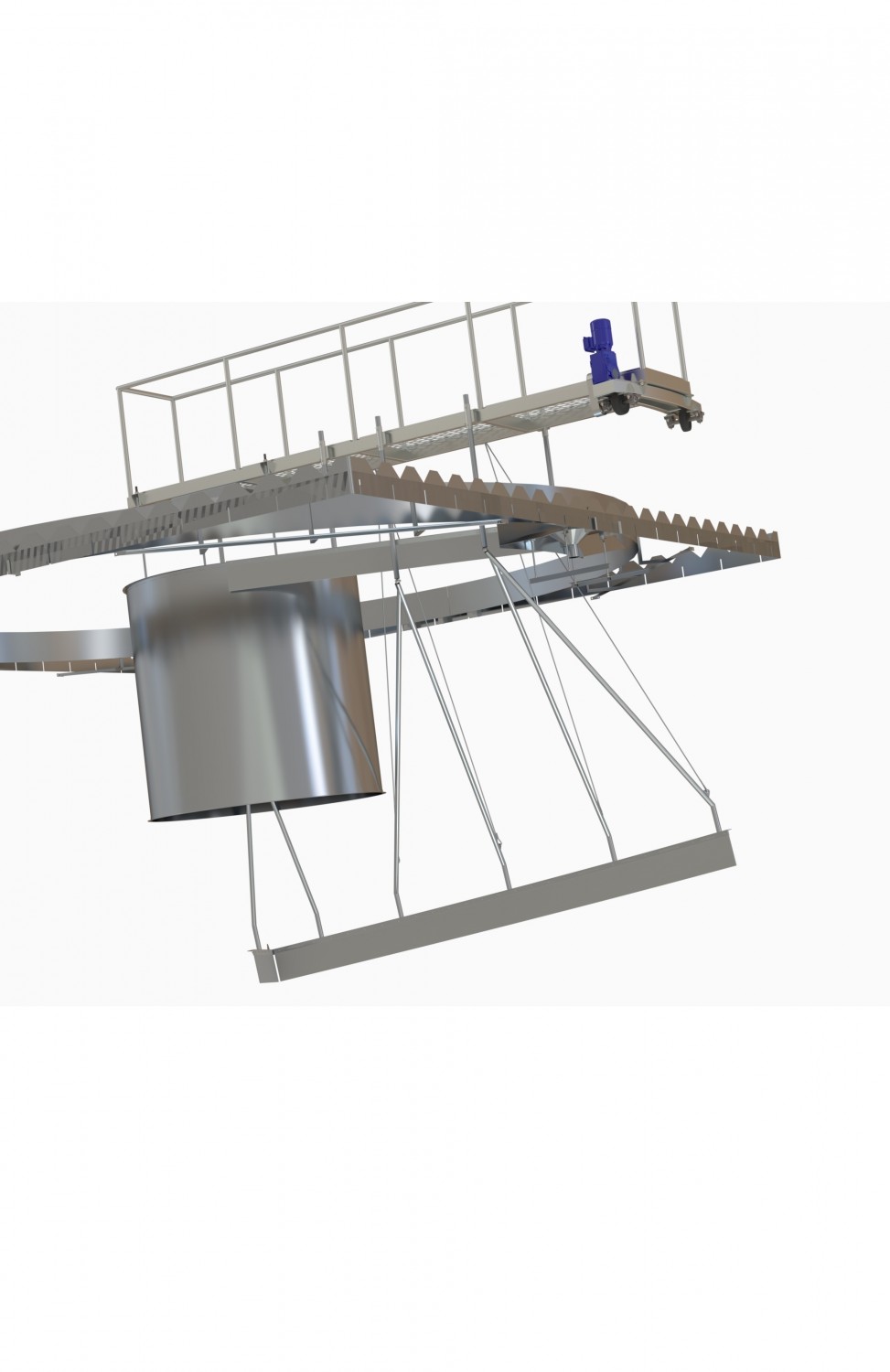

Testing the durability before fabrication:

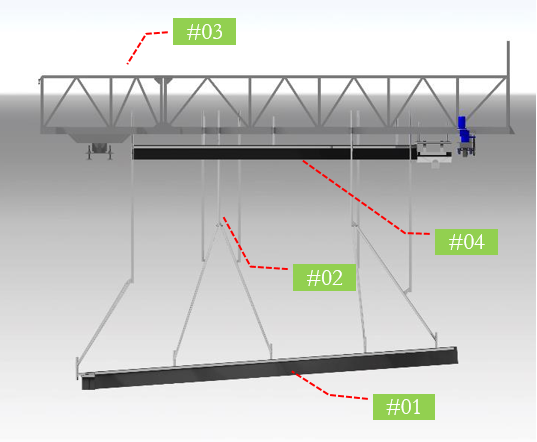

The system is designed with 4 simple details:
 Detail #01: Bottom sludge scraper = ½ diameter of the tank;
 Detail #02: Connecting frame;

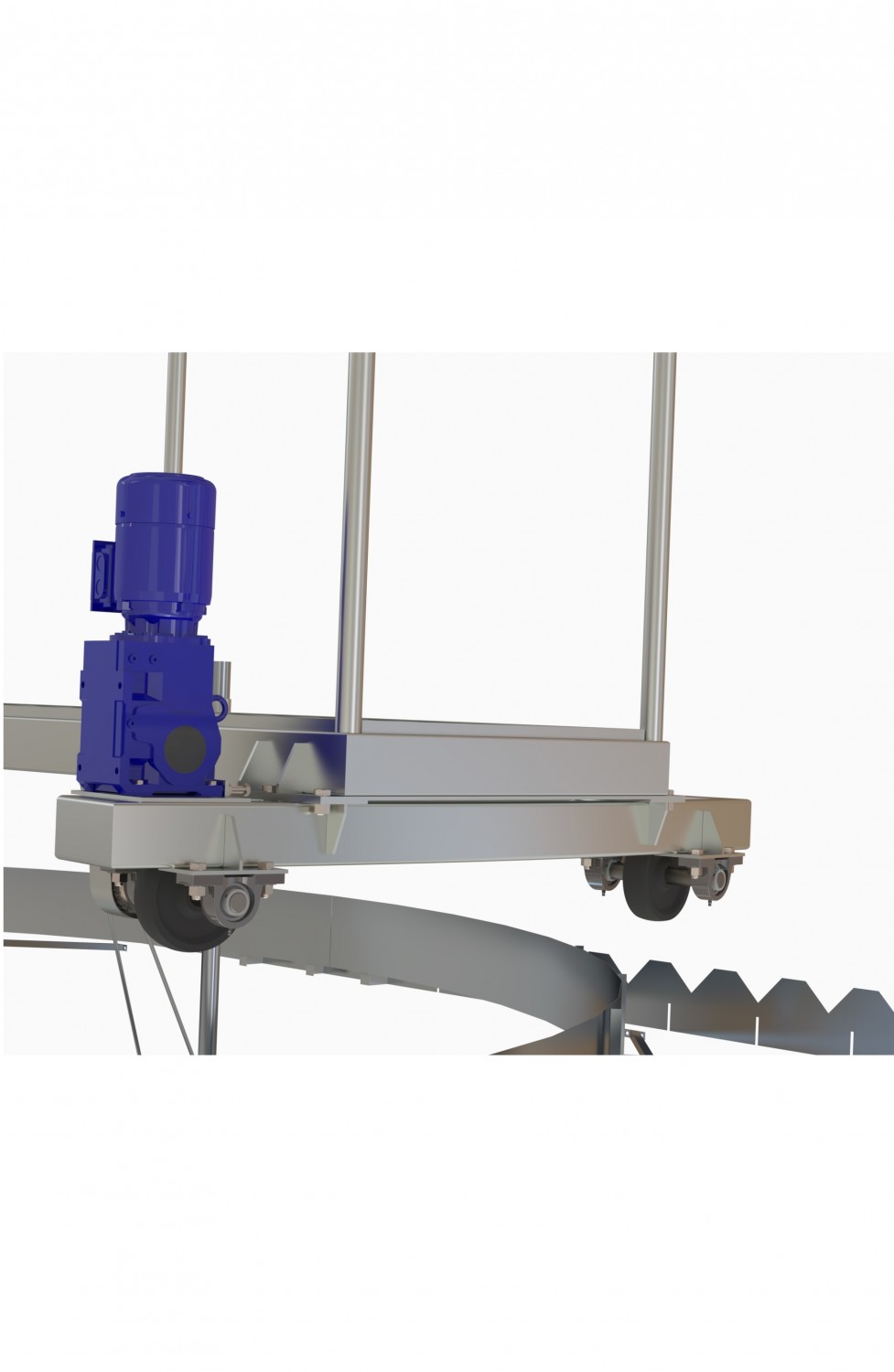

 Detail #03: Bridge and motor;
