TRAMP OIL REMOVAL SYSTEM - AOS-D.OP

TRAMP OIL REMOVAL SYSTEM

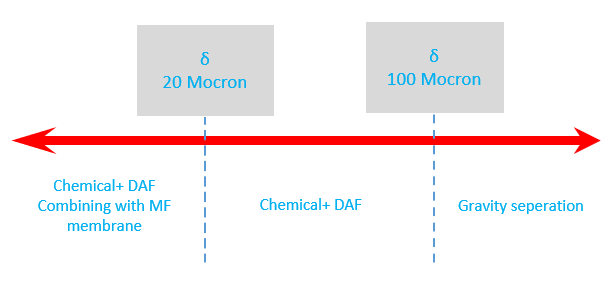

The tramp oil removal system by natural method is applicable to wastewater with high oil concentration (> 70 mg/l) or free oil particles existing in wastewater of equivalent size of δ > 20 micron. Depending on the size of the free oil particles present in the wastewater - δ, the classification of removal method to remove tramp oil is as follows:

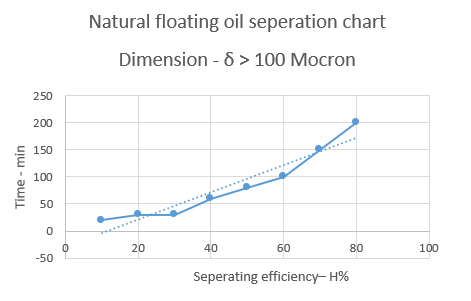

Based on the mechanical properties of grease in natural conditions, Dai Hung researches and develops oil removal system suitable for each application condition.


Device selection

Tank size
Fluids

Q&A

-> An industrial exhaust fan is designed to remove air, heat, and fumes from a workspace, while a centrifugal fan uses centrifugal force to move air efficiently through ducts or systems. Centrifugal fans are commonly used in dust collection and ventilation systems requiring high pressur

-> A gas scrubber is typically used to treat acidic or chemical exhaust gases such as SO₂, HCl, NH₃, and VOCs. Depending on the scrubbing solution and design, it can also capture particulates and neutralize harmful emissions from industrial processes

-> A high-quality submersible mixer typically lasts between 5 to 10 years, depending on material quality, operating conditions, and maintenance frequency. Using stainless steel materials and regular servicing can extend the mixer’s lifetime

-> A belt filter press can process between 5 to 50 cubic meters of sludge per day, depending on sludge concentration, belt width, and machine capacity. Proper conditioning and polymer dosing improve dehydration efficiency

-> Yes, a DAF system is highly effective in separating oil, grease, and suspended solids from food-processing wastewater. By injecting microbubbles, it floats contaminants to the surface for removal, improving overall treatment efficiency

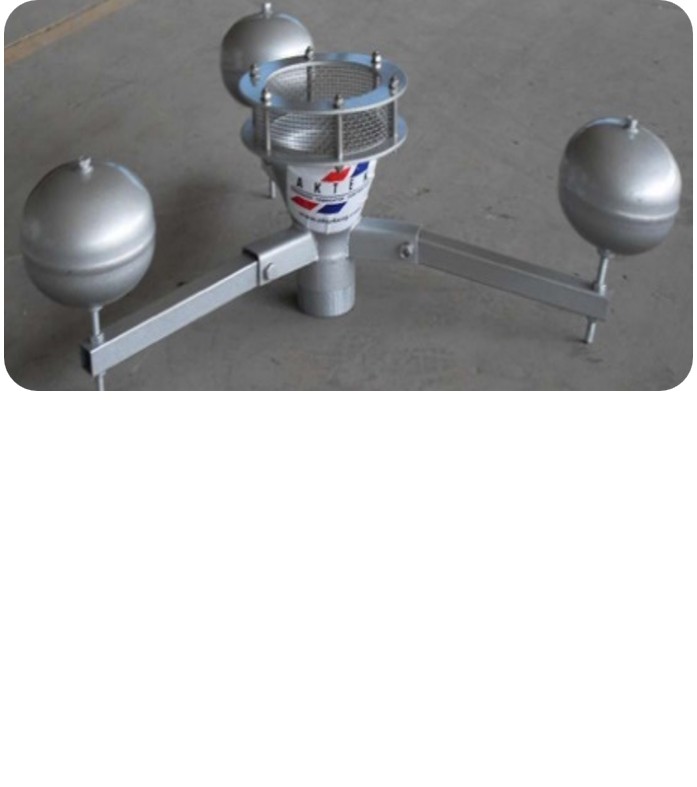

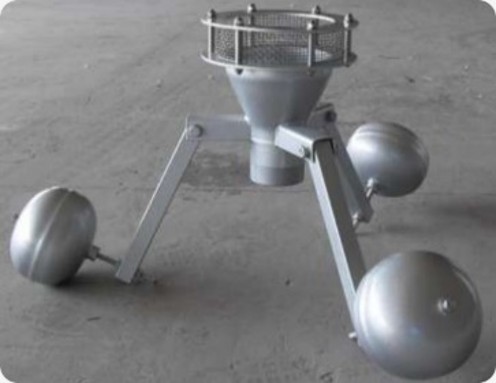

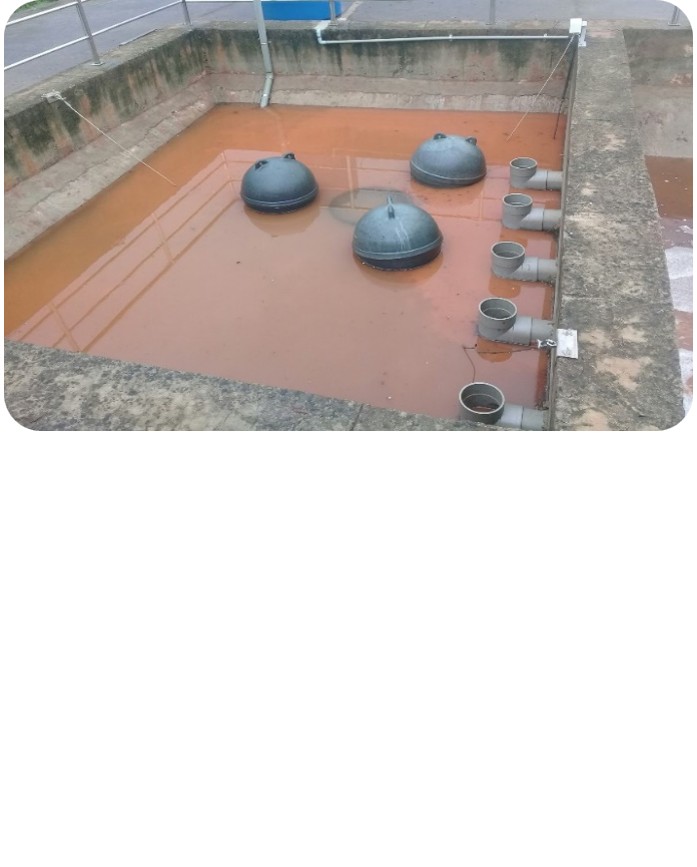

FLOATING OIL REMOVAL SYSTEM
Application
oWastewater with large flow, free oil particles with size δ> 100 micron and concentration > 70 mg/l.
oThe device is installed in tanks with fluctuating water levels.
MODEL: OP-3-0,55
OP Equipment floating with water level change
3 Discharge flow rate – Q (m3/h)
0,75 Power – P (kw)
Model Specification of the product Grease flow rate  Power DN
Name Q-m3/h P-kw m3/h Kw mm

D.OP  3 - 5    0,75 Model: D.OP-Q-P 3 - 5 0,75 50
D.OP  5 - 8    1,10 Power: 0,75 – 1,1kw/380v/50Hz 5 - 8 1,10 65
      Material: SS304/PVC
      Application: Grease trap tank

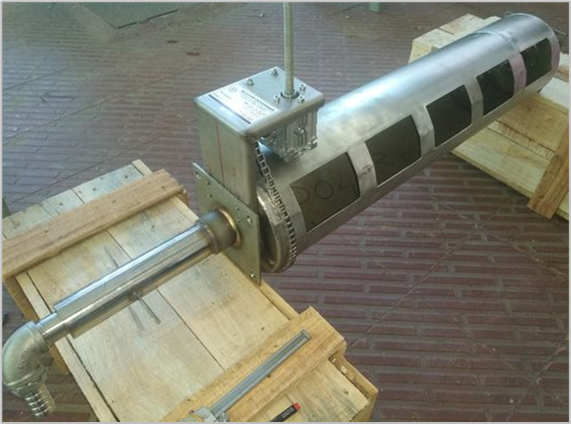

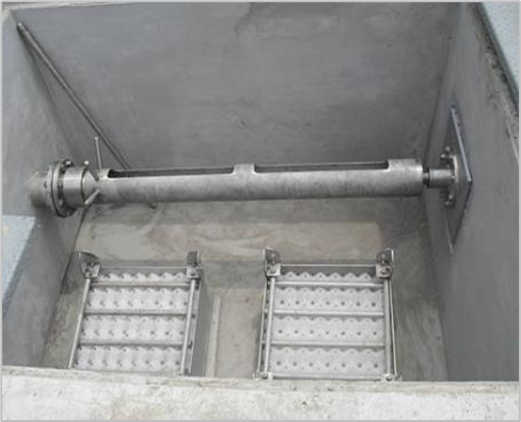

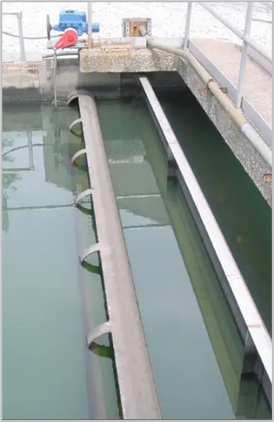

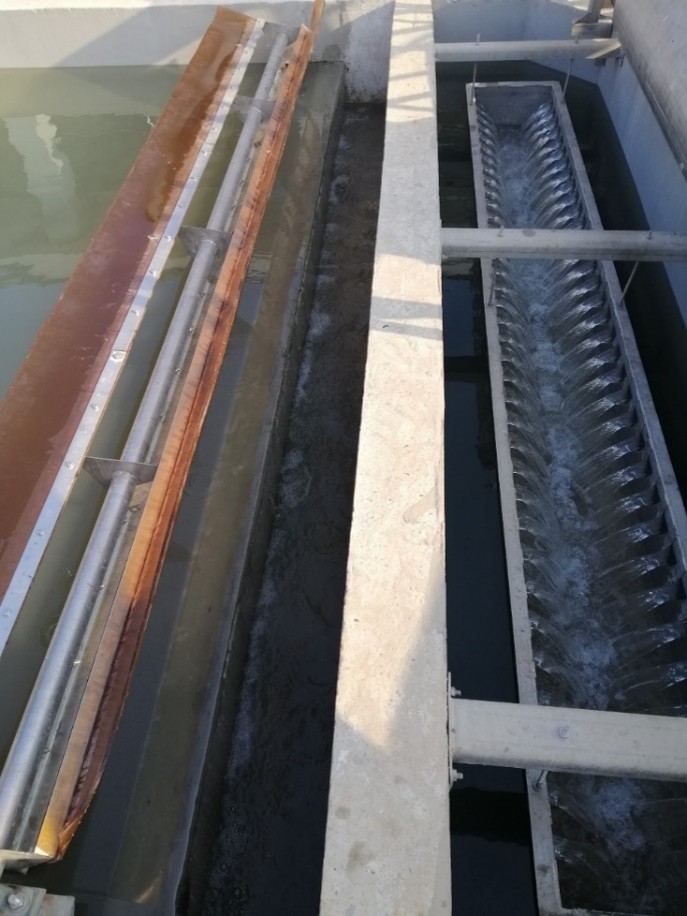

FIXED OIL REMOVAL SYSTEM
Application
oWastewater with large flow, free oil particles with size δ> 100 micron and concentration> 70 mg/l.
oThe equipment is installed in a tank with a fixed water level and suitable height for collecting the grease by its flow.
oOil separation is done manually.

Model Specification of the product Diameter
Name D mm
D.AOS     200,00          200,0
D.AOS     250,00 Model: D.AOS - D        250,0
D.AOS     300,00 Material: SS304        300,0
D.AOS     350,00          350,0
