AIR PUMP

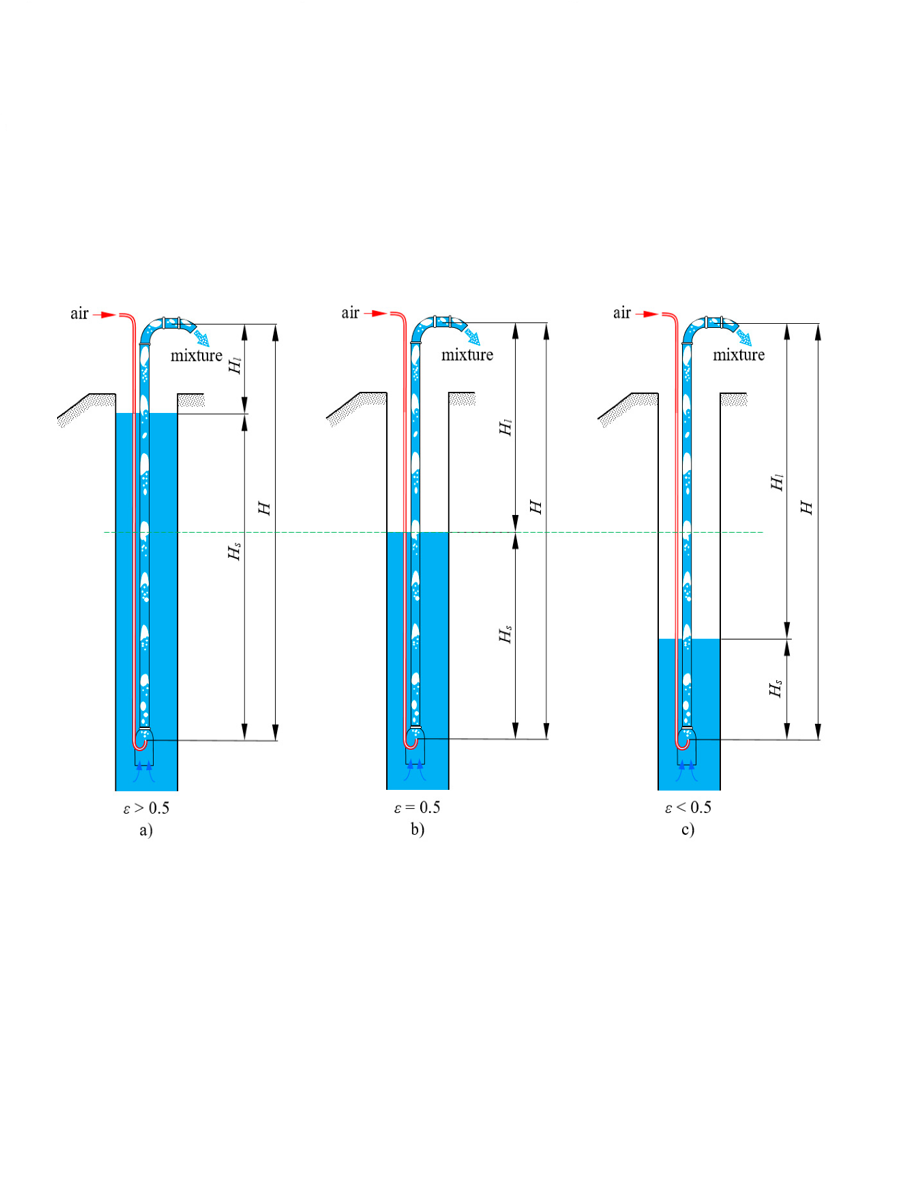

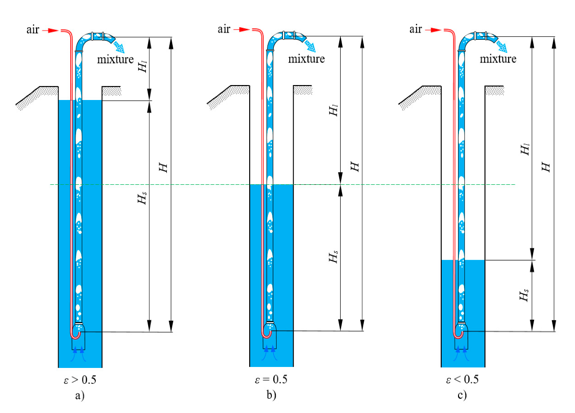

Operation principle:
The air is introduced into a submerged tube containing the transporting solution.
The air moves upward at a high velocity, lifting the  solution along.

Application:
Using gas to transport liquid, slurry solution or low sand concentration solution (< 2%);
High corrosive chemical;

Advantage:
Easy to operate, service life > 20 years;
Low operating – maintenance cost;
No noise when operating;

Device selection

Tank size
Fluids

Q&A

-> A cyclone dust collector primarily separates larger dust particles using centrifugal force. It is not effective for fine particles like PM2.5. To remove PM2.5 efficiently, a bag filter or electrostatic precipitator should be used after the cyclone stage

-> A gas scrubber is typically used to treat acidic or chemical exhaust gases such as SO₂, HCl, NH₃, and VOCs. Depending on the scrubbing solution and design, it can also capture particulates and neutralize harmful emissions from industrial processes

-> A high-quality submersible mixer typically lasts between 5 to 10 years, depending on material quality, operating conditions, and maintenance frequency. Using stainless steel materials and regular servicing can extend the mixer’s lifetime

-> A belt filter press can process between 5 to 50 cubic meters of sludge per day, depending on sludge concentration, belt width, and machine capacity. Proper conditioning and polymer dosing improve dehydration efficiency

-> Yes, a DAF system is highly effective in separating oil, grease, and suspended solids from food-processing wastewater. By injecting microbubbles, it floats contaminants to the surface for removal, improving overall treatment efficiency

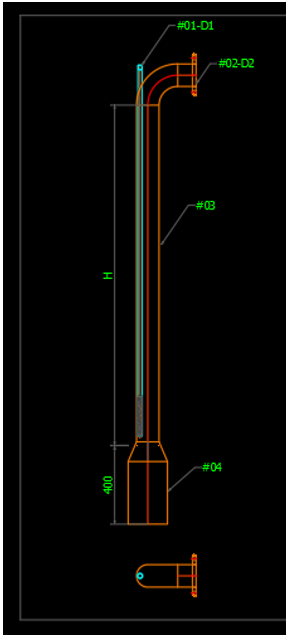

Model: AirLift Specification of Product
Series D1 D2 H
mm mm mm
AirLift 21 75 Designed Model: Airlift – D2
27 90 Type: Air-Lift is used for the lifting
34 114 Capacity: 20 - 80 m3/h
49 140 Material: SS304/ SS400-Epoxy

Note: The specifications in the table are for reference when selecting. Each product is designed and manufactured according to its application.
