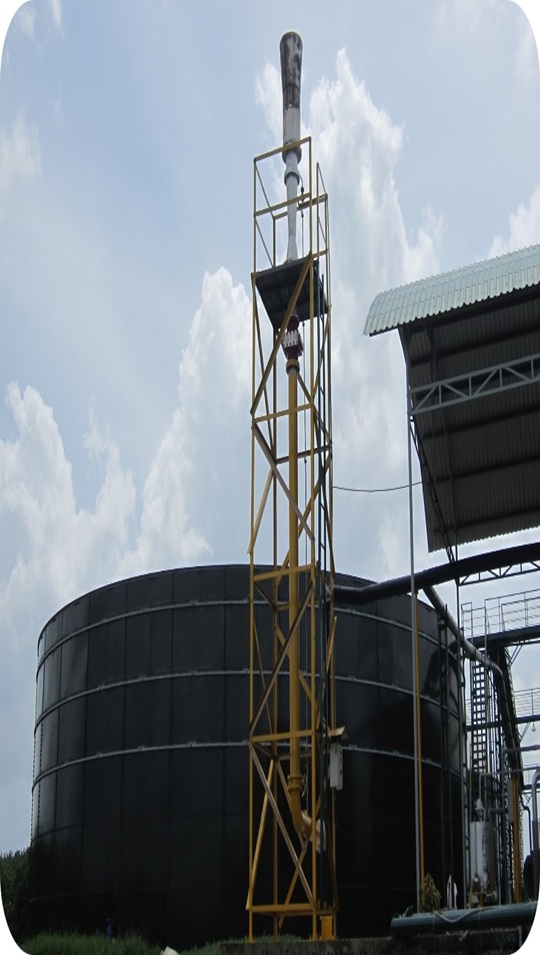

BIOGAS FLARE SYSTEM - Bio-FS

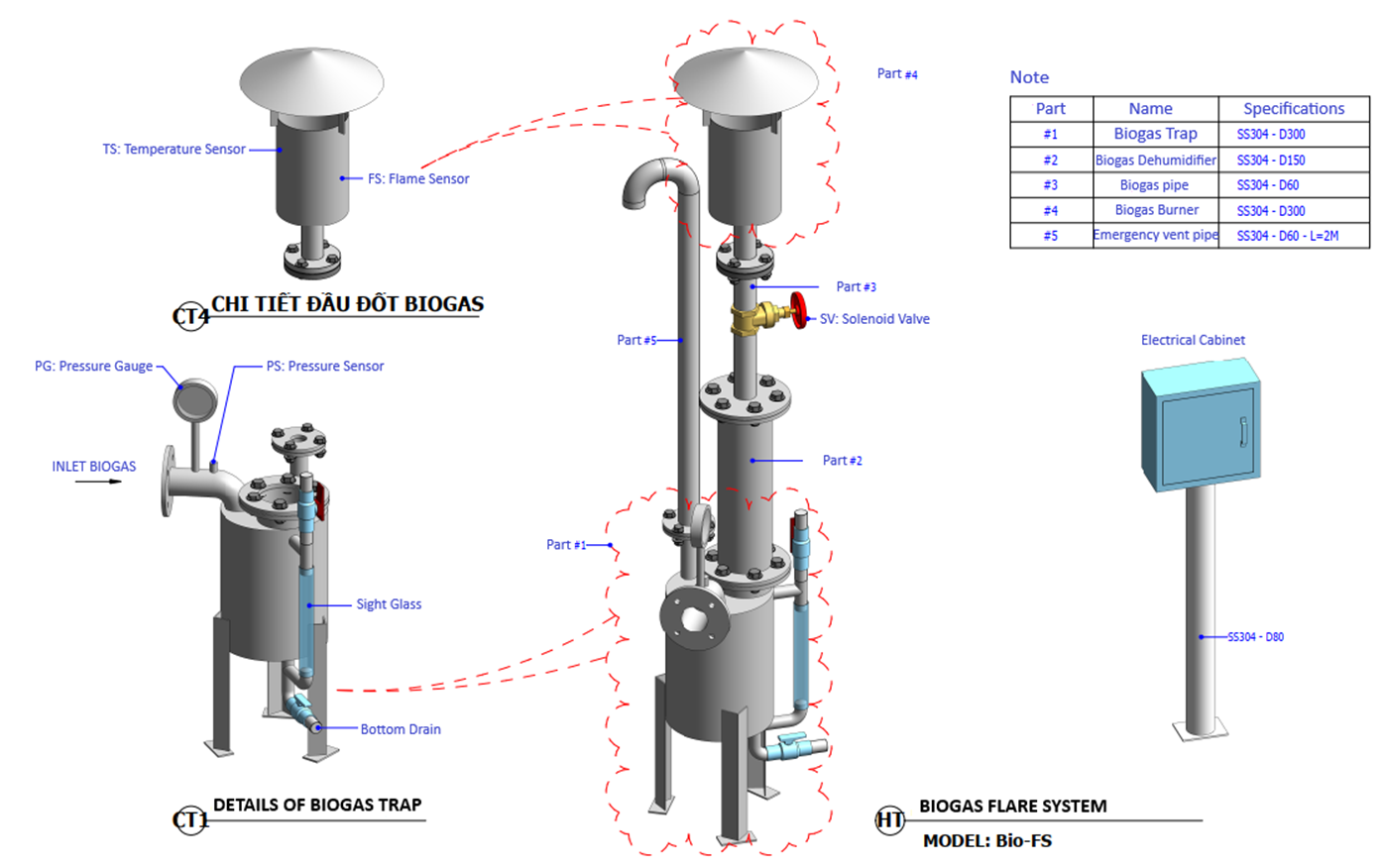

Operating Principle
The system is specially designed to ensure an efficient combustion process. The operating principle of the system is as follows:

-      Biogas is received from the anaerobic digestion system.
-     Biogas is fed into a water trap system to increase its CH4 concentration before combustion, while also preventing flashback when the biogas is burned. In some specific cases, this device is replaced with a flashback arrestor.
-       The biogas is dehumidified before being directed into the gas burner.

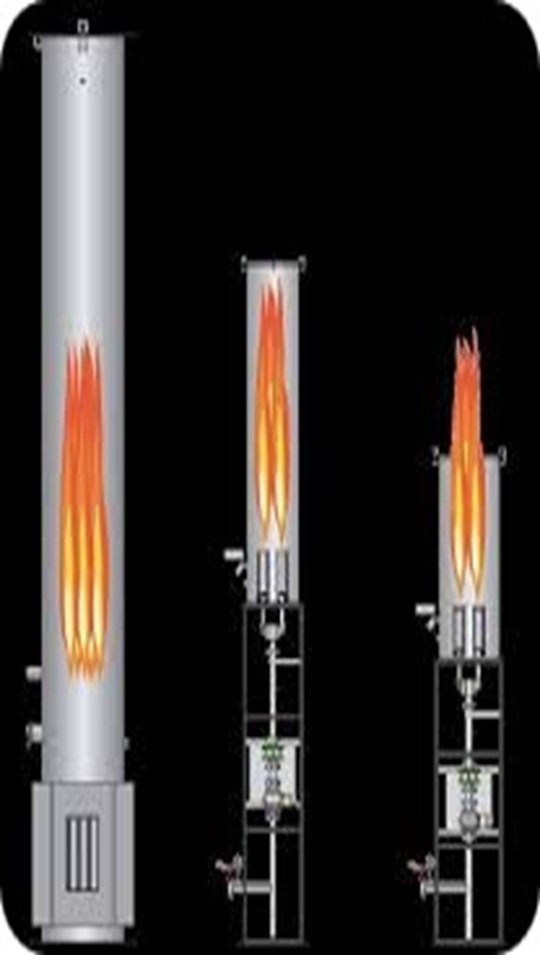

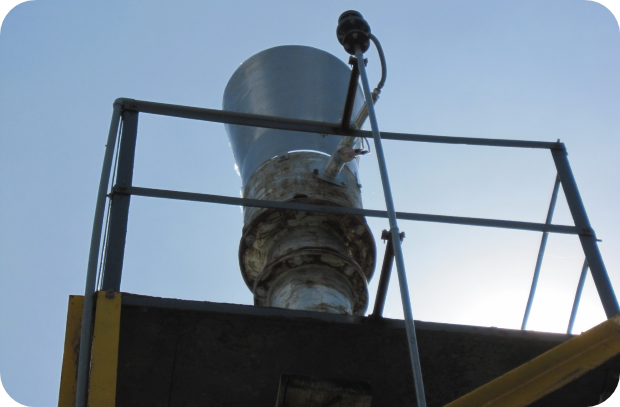

-       The gas burner is designed with the following components: a temperature probe, a Biogas nozzle, and an igniter.
An electrical cabinet is installed to control the equipment, monitor its operational processes, and trigger an alarm in case of a system fault.
Additionally, the system is equipped with an emergency gas vent pipe.
The entire combustion process is fully automated and monitored by pressure sensors, temperature sensors, and solenoid valves.

Device selection

Tank size
Fluids

Q&A

-> An industrial exhaust fan is designed to remove air, heat, and fumes from a workspace, while a centrifugal fan uses centrifugal force to move air efficiently through ducts or systems. Centrifugal fans are commonly used in dust collection and ventilation systems requiring high pressur

-> A gas scrubber is typically used to treat acidic or chemical exhaust gases such as SO₂, HCl, NH₃, and VOCs. Depending on the scrubbing solution and design, it can also capture particulates and neutralize harmful emissions from industrial processes

-> A belt filter press can process between 5 to 50 cubic meters of sludge per day, depending on sludge concentration, belt width, and machine capacity. Proper conditioning and polymer dosing improve dehydration efficiency

-> Yes, a DAF system is highly effective in separating oil, grease, and suspended solids from food-processing wastewater. By injecting microbubbles, it floats contaminants to the surface for removal, improving overall treatment efficiency

Note:  Each product is designed and manufactured to suit specific applications.

                                       Option – Biogas Filter System before burned

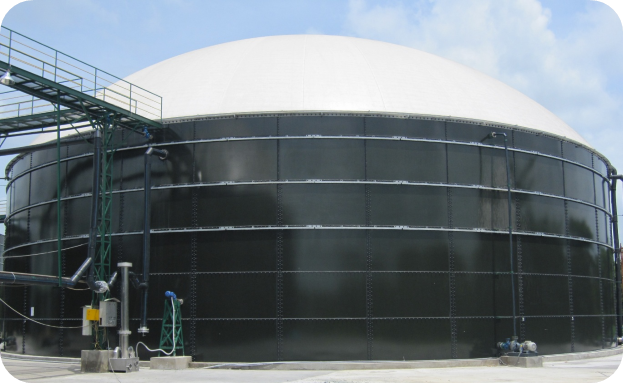

                                                           Biogas storage tank

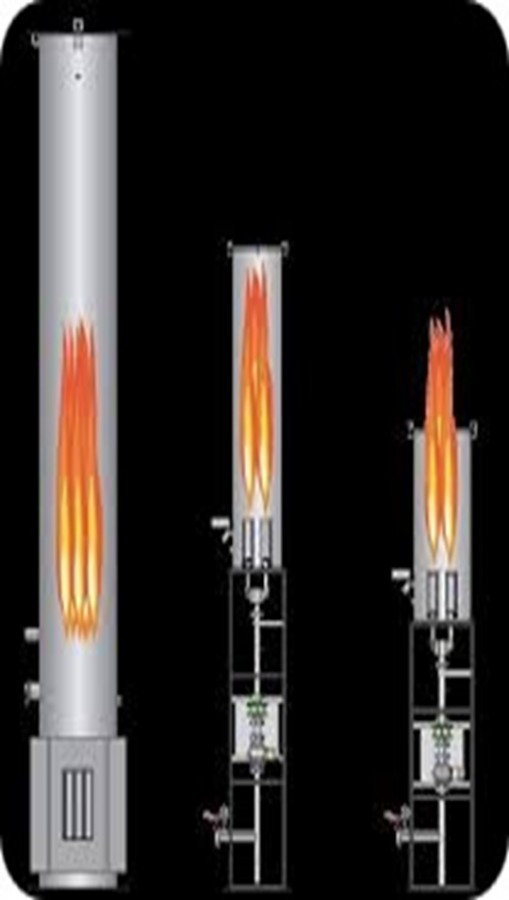

                                                             Biogas burner

Scope of Application
-            For biological treatment systems that generate biogas.
-            For the combustion of excess biogas at biogas power generation plants.
