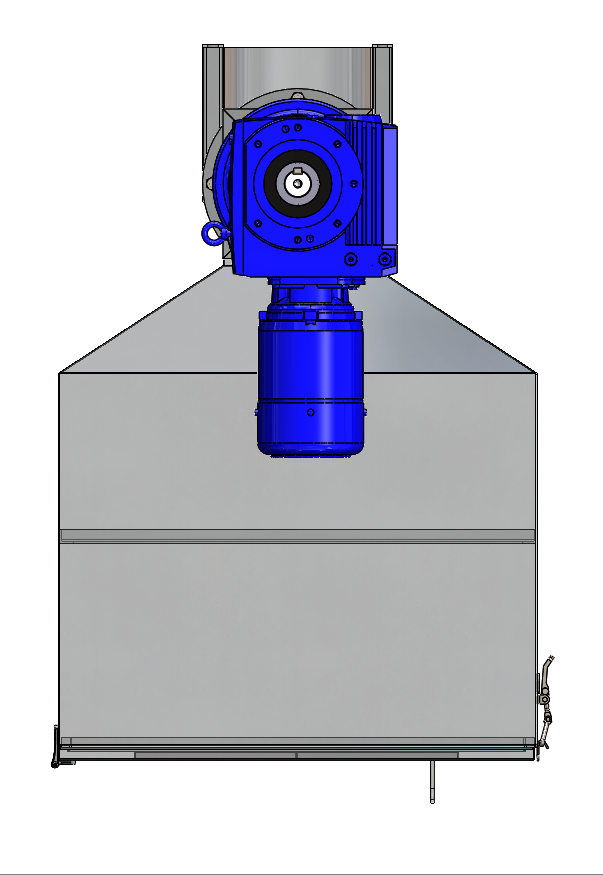

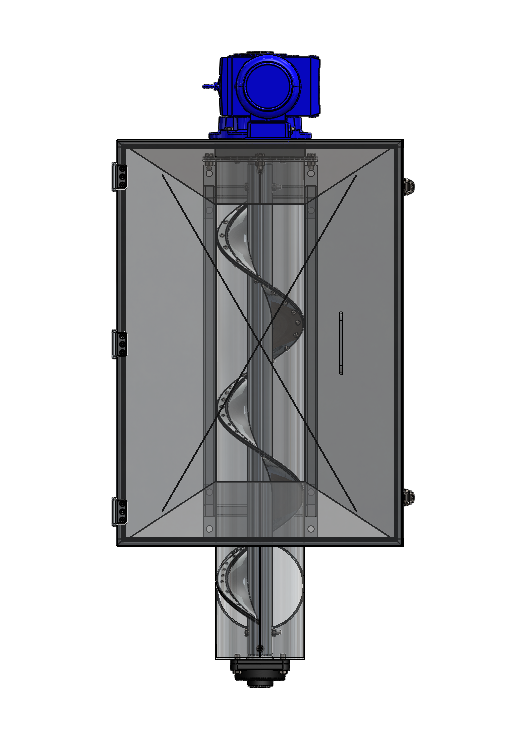

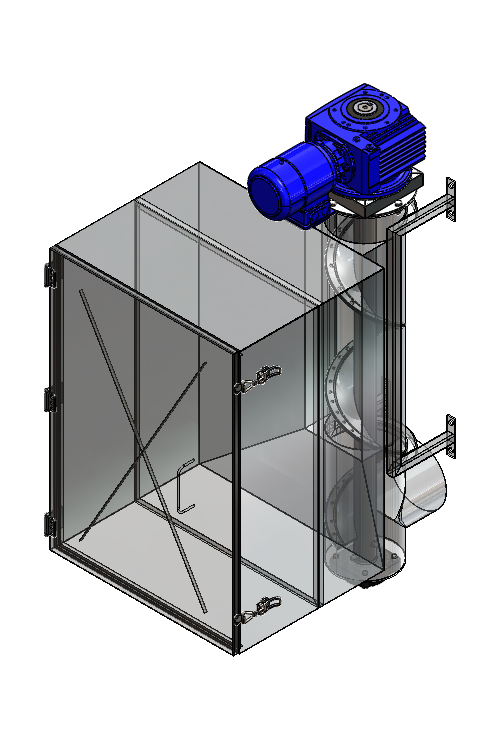

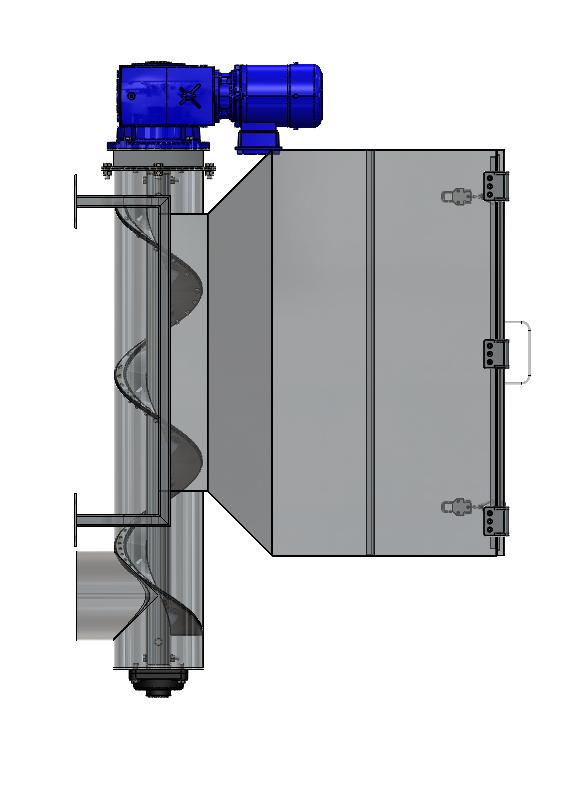

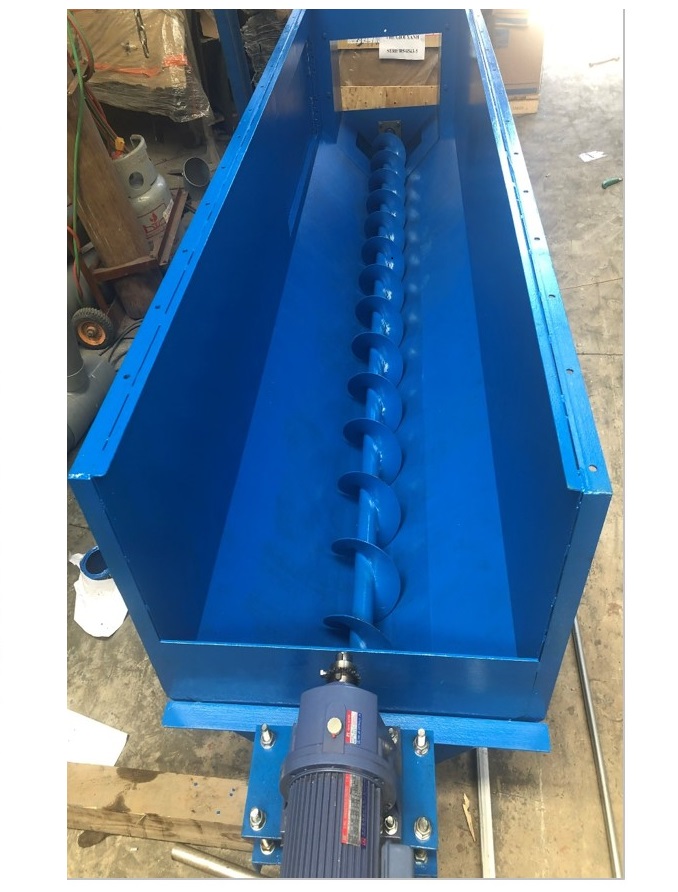

SCREWING SYSTEM

Principle:
Using the torsion shaft to screw the solids according to the drive from the reducer motor. The amount of substrate is regulated through the speed controlled by the gearbox and the Inverter.

Application:
Loading solids, viscous solids and other solutions with low viscosity.
Each application has a unique design, suitable for the required function of use.
To ensure the right design, customers are always consulted by Dai Hung's engineers for free after confirming the order.

Device selection

Tank size
Fluids

Q&A

-> An industrial exhaust fan is designed to remove air, heat, and fumes from a workspace, while a centrifugal fan uses centrifugal force to move air efficiently through ducts or systems. Centrifugal fans are commonly used in dust collection and ventilation systems requiring high pressur

-> A cyclone dust collector primarily separates larger dust particles using centrifugal force. It is not effective for fine particles like PM2.5. To remove PM2.5 efficiently, a bag filter or electrostatic precipitator should be used after the cyclone stage

-> A gas scrubber is typically used to treat acidic or chemical exhaust gases such as SO₂, HCl, NH₃, and VOCs. Depending on the scrubbing solution and design, it can also capture particulates and neutralize harmful emissions from industrial processes

-> An industrial mixer is suitable for surface or tank-level mixing in chemical or wastewater treatment systems, while a submersible mixer is ideal for continuous agitation in deep tanks or equalization basins to prevent sedimentation

-> A high-quality submersible mixer typically lasts between 5 to 10 years, depending on material quality, operating conditions, and maintenance frequency. Using stainless steel materials and regular servicing can extend the mixer’s lifetime

-> A belt filter press can process between 5 to 50 cubic meters of sludge per day, depending on sludge concentration, belt width, and machine capacity. Proper conditioning and polymer dosing improve dehydration efficiency

-> Yes, a DAF system is highly effective in separating oil, grease, and suspended solids from food-processing wastewater. By injecting microbubbles, it floats contaminants to the surface for removal, improving overall treatment efficiency

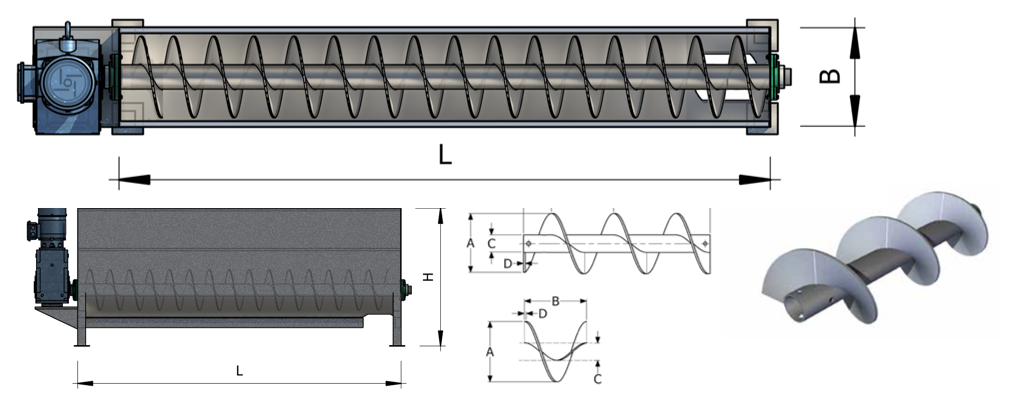

Model: D.Sc Spec of Produce Gear Motor A=B C D L
Name P D Elec – P rpm mm mm mm mm
kw mm
D.Sc   0,37 150 Model: D.Sc – P – D 0,37 20 - 90    150     50 3 4000
D.Sc   0,55 200   0,55 20 - 90    225     50 3 4000
D.Sc   0,75 300 Material: SS304 /  SS400-Epoxy 0,75 20 - 90    300     80 3 4000
D.Sc   0,75 350 Gear motor: 0.37 - 5,5kw/380v/50Hz 0,75 20 - 90    350     80 3 4000
D.Sc   0,75 400 Control Panel: MCCB, CB, Inverter 0,75 20 - 90    400    100 5 4000
Note: The specifications in the table are for reference when selecting. Each product is designed and manufactured according to its application.
