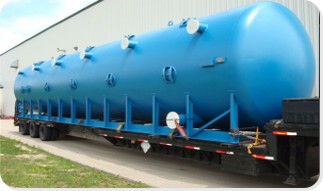

PARTICLE FILTRATION SOLUTION - G.SPF
Device selection
Tank size
Fluids
- Product Information
- Technical Specifications
- Document and Questionnaire of Products
- Related Products
Q&A
What is the difference between an industrial exhaust fan and a centrifugal fan?
-> An industrial exhaust fan is designed to remove air, heat, and fumes from a workspace, while a centrifugal fan uses centrifugal force to move air efficiently through ducts or systems. Centrifugal fans are commonly used in dust collection and ventilation systems requiring high pressur
What types of exhaust gases can a scrubber treat?
-> A gas scrubber is typically used to treat acidic or chemical exhaust gases such as SO₂, HCl, NH₃, and VOCs. Depending on the scrubbing solution and design, it can also capture particulates and neutralize harmful emissions from industrial processes
How much sludge can a belt filter press process per day?
-> A belt filter press can process between 5 to 50 cubic meters of sludge per day, depending on sludge concentration, belt width, and machine capacity. Proper conditioning and polymer dosing improve dehydration efficiency
Can a DAF (Dissolved Air Flotation) tank remove oil and grease from food wastewater?
-> Yes, a DAF system is highly effective in separating oil, grease, and suspended solids from food-processing wastewater. By injecting microbubbles, it floats contaminants to the surface for removal, improving overall treatment efficiency

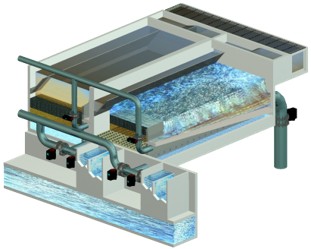

GRAVITY FILTRATION
Designed for water to pass through layers of material, where suspended solids are retained on the surface or within the pores of the material.
PRESSURE FILTRATION
PROJECT
New Wide Textile & Dyeing Factory
Wastewater Type: Textile dyeing effluent
Capacity: 4.000 m3/day
Year: 2016
Technology Applied:
Designed for water to pass through layers of material, where suspended solids are retained on the surface or within the pores of the material.

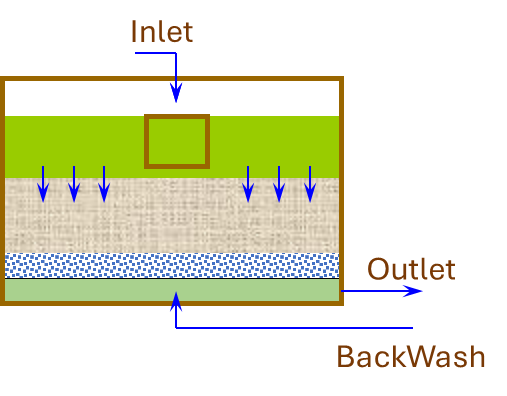

GRAVITY FILTRATION SYSTEM
-
Filtration Flow: Downward (from top to bottom).
-
Filter Media: Filter sand.
-
Controller: Automatic backwash pressure control.
-
Backwash Process: Combined air-water backwash.

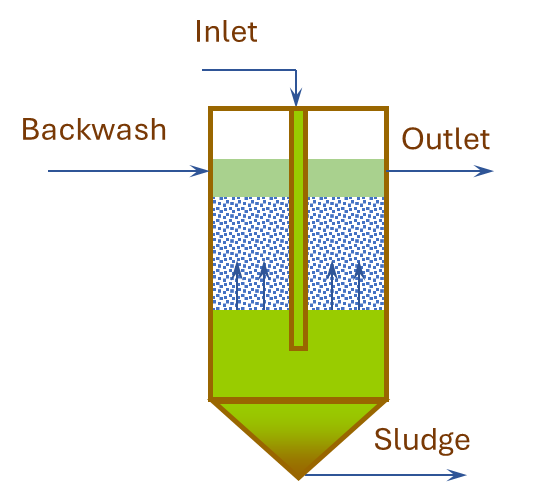

CONTACT FILTRATION SYSTEM
-
Process: Combined sedimentation and filtration in a single module.
-
Filtration Flow: Upflow (from bottom to top).
-
Filter Media: Polystyrene.
-
Controller: Automatic backwash pressure control.
-
Backwash Process: Combined air-water backwash

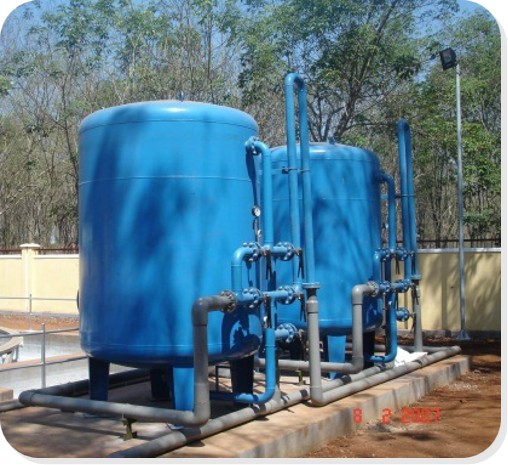

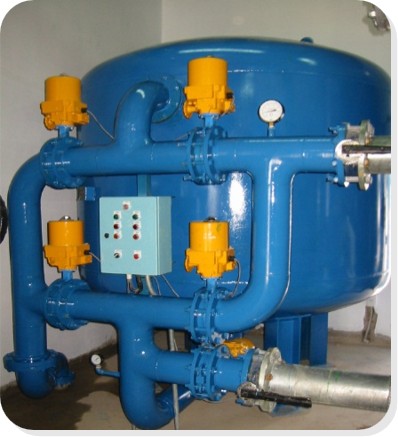

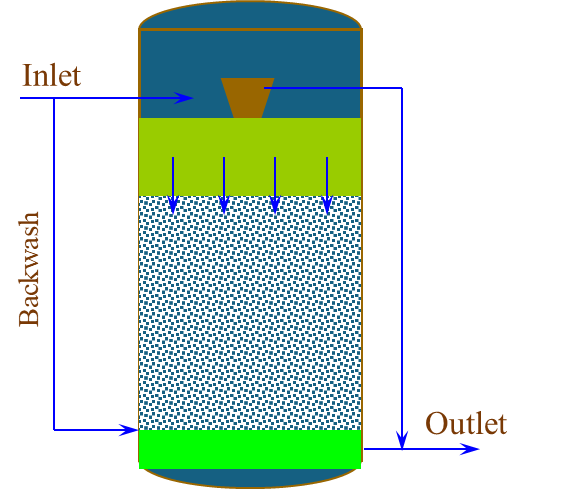

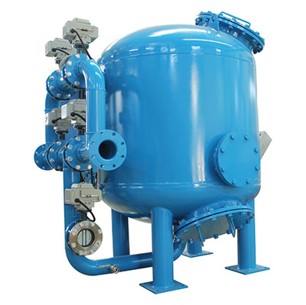

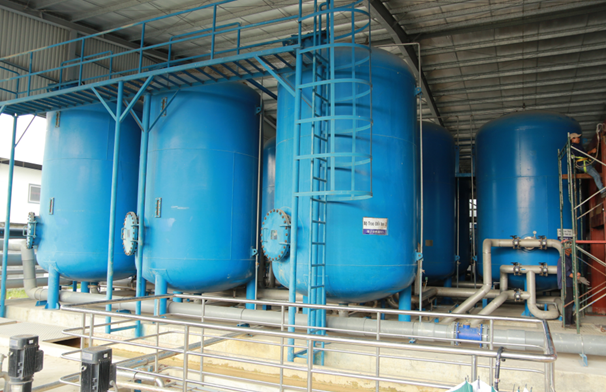

PRESSURE FILTRATION
•Filtration Process: Downflow (water flows from top to bottom);
•Backwash Process: Requires high-pressure and high-flow rate water;
•Filtration Control: MAN – Auto;
•Filter Media: Coarse sand, quartz sand, activated carbon;
•Tank Material: SS304, FRP, Steel
•Filtration Pressure: 2 – 3.5 bar
| No. | Model | Q | S | Circular Tank | Backwash | |
| m3/h | m2 | D | H | m3/h | ||
| 1 | G®.SPF 01 | 0 - 5 | 0.64 | 0.9 | 2.5 | 8.25 |
| 2 | G®.SPF 02 | 0 - 10 | 1.13 | 1.2 | 2.5 | 16.50 |
| 3 | G®.SPF 03 | 10 - 15 | 1.13 | 1.2 | 3.5 | 24.75 |
| 4 | G®.SPF 04 | 15 - 20 | 1.77 | 1.5 | 3.5 | 33.00 |
| 5 | G®.SPF 05 | 20 - 25 | 1.77 | 1.5 | 3.5 | 41.25 |
| 6 | G®.SPF 06 | 25 - 30 | 2.27 | 1.7 | 3.5 | 49.50 |
| 7 | G®.SPF 07 | 30 - 35 | 2.27 | 1.7 | 3.5 | 57.75 |
| 8 | G®.SPF 08 | 35 - 40 | 3.14 | 2.0 | 3.5 | 66.00 |
PROJECT
New Wide Textile & Dyeing Factory
Wastewater Type: Textile dyeing effluent
Capacity: 4.000 m3/day
Year: 2016
Technology Applied:
•A pre-treatment system combined with G.NbAF tank technology
